Marine and outdoor rigging operations face constant high-stakes challenges. Equipment failure is simply not an option during heavy lifts. Severe environmental degradation rapidly accelerates metal fatigue in these settings. Standard rigging hardware degrades quickly in saltwater and high-humidity zones. Standard stainless steel resists rust effectively but often lacks the required Working Load Limit (WLL) for industrial applications. Rigging engineers frequently struggle to find a reliable hardware balance. G80 shackles provide the ideal bridge between high-tensile alloy strength and environmental survivability. This guide delivers an objective framework to help you evaluate and verify rigging hardware. You will learn how to select optimal shapes, protective coatings, and pin designs for harsh environments.
Material Efficiency: Grade 80 (G80) alloy steel offers a significantly higher strength-to-weight ratio than standard carbon steel, allowing for lighter, more manageable hardware at identical load capacities.
Shape Dictates Function: G209 bow shackles are required for multi-directional or multi-leg loads, whereas G210 D shackles are strictly for straight-line, in-line tension.
Coating is Critical: Heavy-duty hot-dip galvanizing is the minimum standard for marine G80 hardware to prevent galvanic corrosion and hydrogen embrittlement.
Pin Security: Bolt-type (safety) pins are mandatory for permanent or high-vibration marine installations; screw pins are acceptable only for temporary, monitored lifts.
Compliance Verification: Authentic hardware must feature raised forging marks (WLL, Traceability Code, Grade) and comply with ASME B30.26 or equivalent standards.
Metallurgical advantages clearly define Grade 80 alloy steel. Manufacturers apply specialized heat treatments during production. Quenching and tempering processes fundamentally alter the molecular structure of the metal. This thermal manipulation creates superior tensile strength. It also provides excellent impact resistance compared to standard G43 or G70 carbon steel. Rigging crews can manage lighter hardware configurations. They do not sacrifice overall lifting capacity. This specific strength-to-weight ratio makes these alloy components essential for demanding outdoor lifts.
Many procurement teams fall victim to a common misconception. They assume Type 316 stainless steel is the ultimate solution for every marine application. Stainless steel does offer exceptional ultimate corrosion resistance. However, it generally presents a significantly lower Working Load Limit than Grade 80 alloy steel. Heavy industrial lifting demands high WLL ratings. Stainless components simply cannot support massive offshore structural loads safely. G80 alloy components deliver the necessary heavy-lift capacity. We must prioritize structural lifting strength over cosmetic metal longevity.
Saltwater pitting acts as a silent structural threat. Rust scale fundamentally compromises the geometric integrity of the shackle bow. It also degrades the critical pin threads over time. These environmental attacks reduce the actual breaking strength of the equipment. The true capacity falls below the stated Working Load Limit stamped on the metal. This invisible degradation poses massive safety risks. Operators might execute a lift assuming full WLL capacity. Degraded metal can yield or fracture under loads previously considered safe. Proper material selection prevents this dangerous geometric loss.
Electro-galvanized or zinc-plated coatings remain insufficient for marine use. The electroplating process applies an extremely thin layer of zinc. Rough handling easily scrapes this thin layer off the metal surface. Exposed alloy rusts immediately in humid environments. Hot-dip galvanizing (HDG) provides the necessary protection. The HDG process creates a deep metallurgical bond. It applies thick layers of zinc over the steel base. This thick coating provides sacrificial anodic protection. The zinc layer will corrode first and protect the steel beneath it even if heavily scratched.
Extreme offshore operations often require secondary protective barriers. Oil rigs and subsea lifting projects subject hardware to intense salt concentrations. Manufacturers often apply specialized powder coatings over the zinc layer. Marine-grade epoxy finishes provide another excellent secondary defense line. These dual-layer coating systems seal the microscopic pores in the galvanized zinc. Subsea Remote Operated Vehicles (ROVs) often interact with these coated components. High-visibility colored epoxy also helps ROV operators identify connection points deep underwater.
Improper galvanizing processes pose severe structural risks to high-strength steel. High-tensile alloys can absorb excess hydrogen during aggressive acid pickling. This absorption causes the steel to become dangerously brittle. Hydrogen embrittlement leads to unpredictable, catastrophic failures under load. You must source hardware from reputable manufacturers. Quality factories utilize controlled, low-temperature galvanizing processes for alloy rigging components. These strict thermal controls prevent hydrogen absorption. They ensure the alloy retains its intended impact resistance and ductility.
Treatment Type | Coating Thickness | Marine Suitability | Durability Against Abrasion |
|---|---|---|---|
Electro-Galvanized (Zinc Plated) | Very Thin (approx. 5-15 microns) | Poor | Low - scratches easily |
Hot-Dip Galvanized (HDG) | Thick (approx. 45-85 microns) | Excellent | High - metallurgically bonded |
Epoxy over HDG | Very Thick (HDG + paint layer) | Extreme Offshore / Subsea | Very High - dual protection |

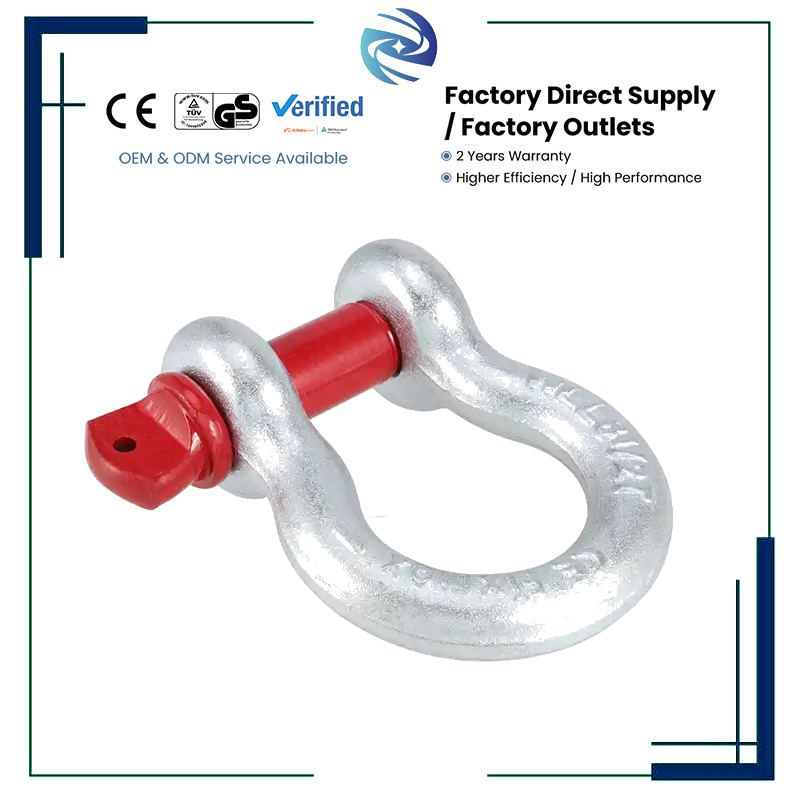

The widened O-shape structural advantage defines anchor shackles. This rounded bow allows for the secure attachment of multiple sling legs. You can comfortably fit wire rope, synthetic slings, or chain components without crowding the pin. This spacious design makes them highly versatile. G209 bow shackles handle angular loads safely. However, rigging engineers must understand side-loading realities. You must derate the working capacity according to the load angle. A 45-degree angle typically reduces capacity by 30 percent. A 90-degree angle results in a massive 50 percent capacity loss. Operators must calculate these reductions before commencing multi-leg lifts.
The narrower U-shape provides a specific structural advantage. Engineers designed this shape purely for straight, in-line tension. G210 D shackles excel at connecting single-leg slings to fixed anchor points. They work perfectly linking chain components where lateral movement remains strictly restricted. The narrow body keeps the load perfectly centered over the pin. We must emphasize a critical risk warning regarding this design. You must never subject a D-shaped body to side loads. Angular tension risks catastrophic deformation of the narrow bow. This deformation will ultimately cause the pin threads to shear.
Screw pin configurations serve specific operational purposes. They remain ideal for "pick and place" temporary lifts. Rigging crews can quickly assemble and disassemble these connections on active job sites. However, marine environments introduce severe operational risks. Continuous wave action generates relentless structural vibration. Synthetic sling friction can easily catch the pin head. These physical forces can cause a screw pin to back out during operation. The pin can unscrew entirely while under load. This unspooling leads to immediate payload drops.
Safety pin designs eliminate the risk of accidental unspooling. This bolt-type configuration acts as an absolute requirement for permanent installations. Mooring lines and static offshore rigging demand this specific mechanism. Lifts involving continuous vibration and load rotation also require this setup. The mechanism operates through redundancy. The nut securely tightens the primary bolt. The cotter pin then slides through the bolt end. This final step prevents the nut from backing off the threads. This system provides a fail-safe mechanical lock.
Insert the main bolt fully through both unthreaded shackle ears.
Thread the retaining nut onto the bolt until flush against the ear.
Align the cross-hole in the bolt with the nut castellations (if applicable).
Insert the cotter pin completely through the cross-hole.
Bend the cotter pin legs outward to lock the entire assembly.
Authentic and safe alloy hardware must display permanent identification. Manufacturers forge these mandatory marks directly into the metal. Stamped or painted marks remain unacceptable for industrial grading. You must look for specific raised identifiers. The Manufacturer ID guarantees origin traceability. The WLL clearly dictates the safe lifting capacity. The Shackle Size ensures compatibility with mating hardware. The Traceability or Batch Code allows engineers to track the exact metallurgical history. Missing forging marks indicate a severely compromised product.
Rigging components must meet strict industry guidelines. Quality hardware meets or exceeds ASME B30.26 standards for rigging hardware. These frameworks dictate strict design, testing, and operational parameters. Compliance ensures the product can handle dynamic industrial loads. The equipment must also align with relevant OSHA regulations, specifically OSHA 1926.251. Adhering to these federal requirements protects your workforce. It also shields your organization from substantial liability during site inspections or incident investigations.
Procurement teams hold the responsibility of verifying safety claims. You should demand comprehensive documentation before purchasing bulk orders. Request the Mill Test Certificates (MTC) to verify the chemical composition of the alloy. Ask for Proof Load Test records. Reputable factories typically proof test components to twice the WLL. You must also request Minimum Breaking Load (MBL) data. High-quality alloy components usually feature an MBL of four to six times the stated WLL. This data proves the required safety factor exists.
The global B2B marketplace contains numerous counterfeit traps. Unbranded hardware poses an immediate threat to your operations. Suspiciously low-cost equipment usually indicates inferior carbon steel disguised as high-tensile alloy. These cheap alternatives often lack traceable metallurgy reports. A failing counterfeit component will cost infinitely more in damages than the savings gained during procurement. Always source from verified manufacturers who gladly provide complete metallurgical documentation upon request.
Successful marine lifting hardware selection requires a strict decision logic. You must balance high alloy load capacity with proper environmental protection. Selecting the correct shape dictates how safely you can manage sling angles. Securing the connection with a fail-safe pin design prevents catastrophic drops during high-vibration operations. Never compromise on proper hot-dip galvanization.
We advise buyers to audit their current rigging inventory immediately. Check your existing hardware for correct capacity-to-weight ratios. Identify any components showing dangerous red rust or lacking clear forging marks. Request material traceability certificates from potential suppliers before finalizing any critical-lift purchases.
A: Yes, you can safely use them for subsea applications. The hardware must feature appropriate marine-grade hot-dip galvanization. Specialized ROV-friendly epoxy coatings provide excellent secondary protection. You must strictly utilize a captive or safety pin configuration to prevent unspooling underwater.
A: Quality G80 rigging hardware typically features a safety factor of 4:1 or 6:1 relative to the Working Load Limit. Exact specifications vary by manufacturer and regional engineering standards. Always consult the manufacturer's data sheet for precise MBL figures.
A: Pre-use visual inspections are absolutely mandatory before every lift. A competent person must conduct formal, documented inspections at least annually. Severe corrosive environments require documented inspections monthly to comply with ASME B30.26 standards.
A: "White rust" is simply zinc oxide. This forms as a normal sacrificial reaction of the zinc coating protecting the steel beneath it. White rust remains purely cosmetic. Red rust, however, indicates compromised base metal requiring immediate replacement.
