| Quantity: | |
|---|---|
Multi-Angle Lifting Compatibility — The wide bow allows multiple connections or sling legs, ideal for basket hitches and complex rigging assemblies.
G80 Grade Forged Alloy Steel — Quenched and tempered for maximum tensile strength and fatigue resistance, offering a 6:1 safety factor.
Sling-Friendly Design — Smooth, large-radius inner bow minimizes friction, stress, and wear on lifting slings.
Secure Screw Pin Lock — Precision-machined screw pin ensures quick installation and reliable closure under load.
Corrosion Protection — Hot-dip galvanized or electro-galvanized coating provides long-term resistance to rust and moisture.
Traceable Markings — Each unit is permanently stamped with WLL, size, and batch code for safety compliance and traceability.
Standard Compliance — Meets or exceeds EN 13889, ASME B30.26, and Federal Specification RR-C-271 Type IVA, Class 2 requirements.
 |  |  |  |
Applications
Multi-leg lifting sling assemblies
Industrial rigging and construction hoisting
Offshore, marine, and port operations
Mining, power plant, and heavy equipment lifting
Vehicle recovery and towing applications
Technical Specifications
Parameter | Specification |

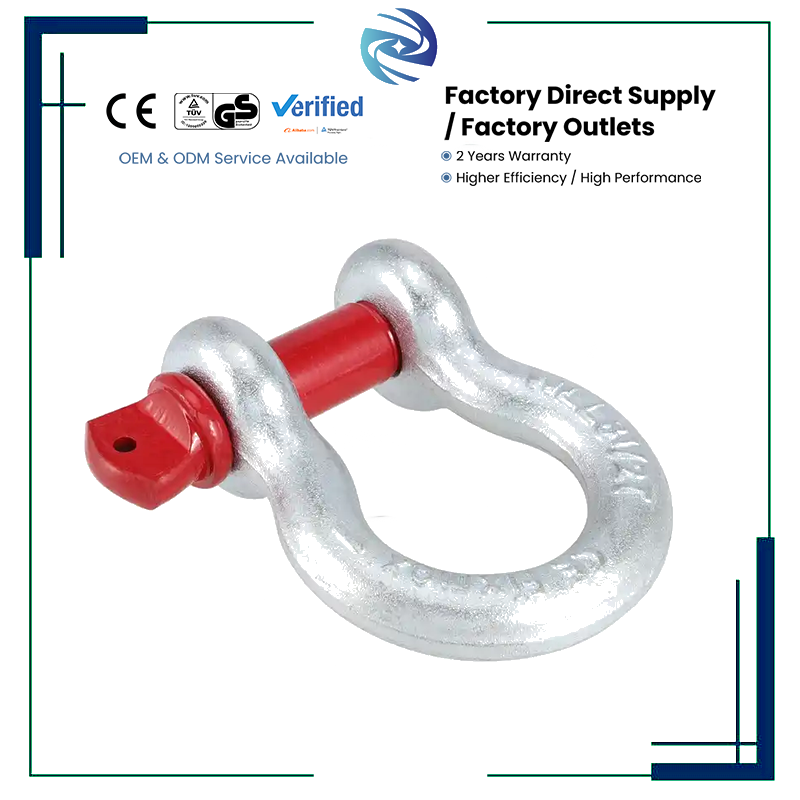

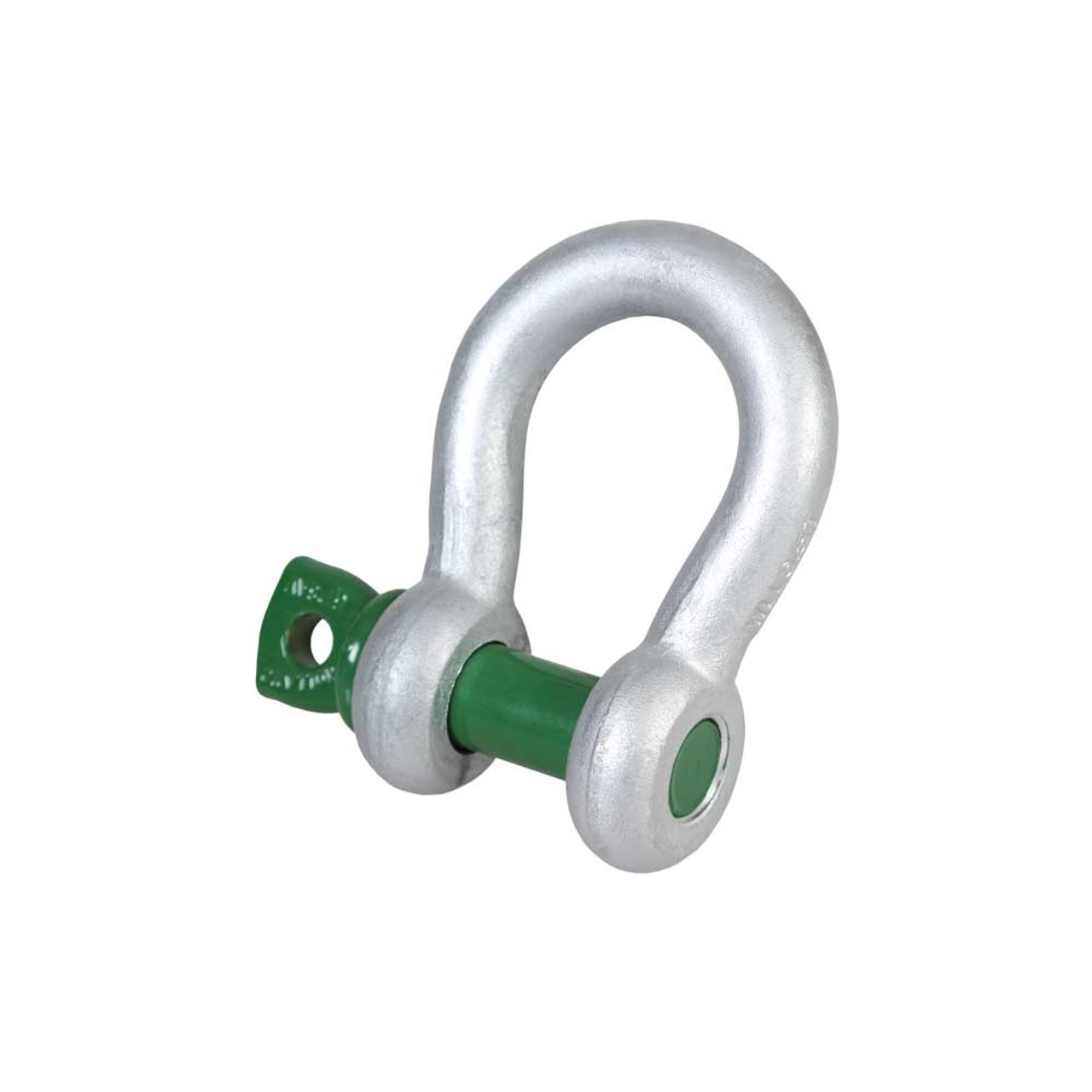

Product Name | G209 Bow Shackle (Screw Pin Anchor Type) |
Material | Forged Alloy Steel, Grade 80 |
Surface Finish | Hot-Dip Galvanized / Electro-Galvanized |
Working Load Limit (WLL) | 0.33T to 55T |
Safety Factor | 4:1 (Minimum) |
Temperature Range | -40°C to +204°C (-40°F to +400°F) |
Pin Type | Screw Pin with Threaded Lock |
Design Standard | EN 13889 / ASME B30.26 / RR-C-271 |
Proof Load | 2 × WLL |
Breaking Load | 4 × WLL |
Markings | Size, WLL, Manufacturer Code, Batch No. |
Optional Features | Bolt-Type Pin, Painted Finish, Customized Logo |
Applications | Lifting, Rigging, Marine, Construction, Recovery |
Why Choose the G209 Shackle
Trusted worldwide for heavy-duty rigging reliability
Smooth bow profile protects lifting slings
Full compliance with global standards (EN / ASME / RR-C-271)
Available in all popular sizes and surface finishes
OEM & ODM customization available for industrial users
Certificate
 |  |  |  |
