Boost productivity and ergonomics in your workspace with our Manual Hydraulic Scissor Lift Tables. Designed as versatile feeding and assembly stations, they feature foot-operated hydraulic lifting, robust steel construction, and built-in safety features, with models ranging from 150kg to 500kg capacity.
Availability:
Quantity:

The Ultimate Ergonomic Solution for Assembly & Material Handling

Tired of inefficient, back-straining workstations? Our Scissor Lift Tables are the answer. This invaluable material handling equipment is engineered to bring the work to the worker, eliminating unnecessary bending and lifting. Perfect for assembly lines, packaging stations, and feeding operations, it allows for precise height adjustment to create a perfectly ergonomic workspace for every task and every employee.


Built with heavy-duty steel and a reliable foot-operated hydraulic pump, our lift tables ensure years of smooth, maintenance-free operation. Take control of your workflow, enhance worker safety, and maximize efficiency with this fundamental piece of industrial equipment.



Key Features & Technical Advantages

Heavy-Duty Steel Construction: The robust structural framework guarantees stability and long-term reliability under daily industrial use, capable of handling heavy loads without compromise.

1.Foot-Operated Hydraulic Lifting: The easy-action foot pedal allows operators to raise the table to the desired height hands-free. This maximizes efficiency and ensures precise positioning while keeping hands clean and free for work.

2.Precise Hand-Controlled Descent: Operators have complete control over the lowering process with the manual descent valve. This allows for careful and safe placement of goods, protecting both the product and the operator.

3.Integrated Overload Bypass Valve: This critical safety feature automatically protects the hydraulic pump and the operator if the table is overloaded, preventing damage and potential accidents, ensuring a secure working environment.

4.Enhanced Productivity & Ergonomics: By easily adjusting the working height, these tables significantly reduce worker fatigue and the risk of repetitive strain injuries, leading to a happier, healthier, and more productive workforce.

5.Versatile Application Platform: The spacious and sturdy table top serves as an ideal platform for assembly, feeding, packaging, and as a temporary holding station, seamlessly integrating into various production workflows.


Scissor Lift Table


cp-9


Specification

Value

Quantity

150 kg

Self-weight

45 kg

Tabletop dimensions

700mm × 450mm

Maximum height

0.72 m (72 cm)

Minimum height

21 cm

Caster size

4 inches

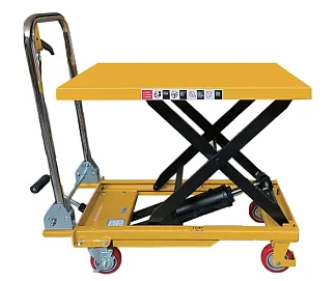

cp-10


Folded mode

Specification

Value

Quantity

150 kg

Self-weight

45 kg

Tabletop dimensions

700mm × 450mm

Maximum height

0.72 m (72 cm)

Minimum height

21 cm

Caster size

4 inches

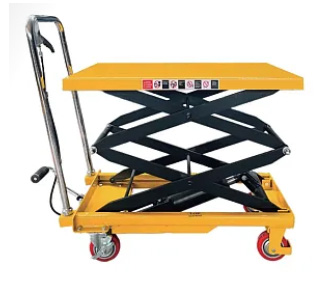

cp-11


Parameter

Value

Quantity

150 kg

Self-weight

58 kg

Tabletop size

700×450 mm

Max height

1.26 m

Min height

30 cm

Caster size

4 inches

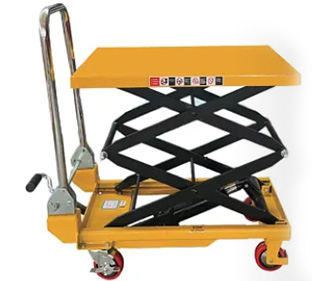

cp-12

Folded mode

Parameter

Value

Quantity

150 kg

Self-weight

58 kg

Tabletop size

700×450 mm

Max height

1.26 m

Min height

30 cm

Caster size

4 inches

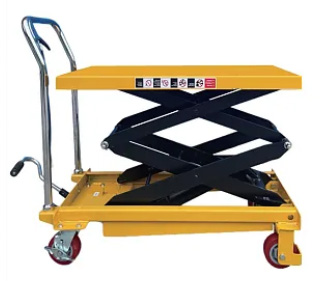

cp-13

Integrated Pump


Load capacity

350 kg

Self-weight

108 kg

Tabletop size

905×500 mm

Max height

1.5 m

Min height

35 cm

Caster size

5 inches

cp-14

Press Type


Load capacity

350 kg

Self-weight

109 kg

Tabletop size

905×500 mm

Max height

1.5 m

Min height

35 cm

Caster size

5 inches

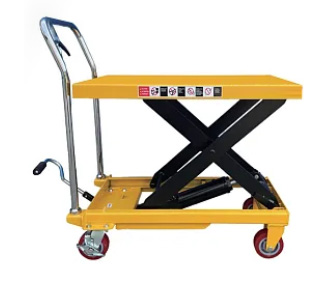

cp-15

Specification

Value

Load capacity

500 kg

Self-weight

80 kg

Tabletop size

815×500 mm

Max height

0.9 m

Min height

28 cm

Caster size

5 inches

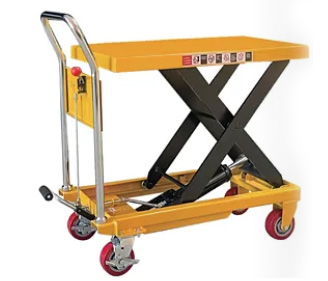

cp-16

Press Type


Load Capacity

500 kg

Net Weight

81 kg

Platform Dimensions

815×500 mm

Max Height

0.9 m

Min Height

28 cm

Wheel Size

5 inches

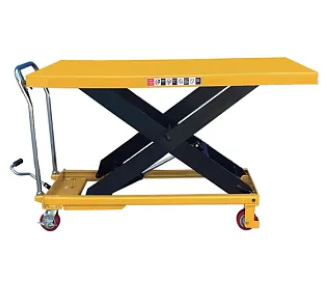

cp-17

Large Platform


Load Capacity

500 kg

Net Weight

126 kg

Platform Size

1600×800 mm

Max Height

0.9 m

Min Height

28 cm

Caster Size

5 inches

cp-18

Folding Model


Load Capacity

500 kg

Net Weight

80 kg

Platform Size

815×500 mm

Max Height

0.9 m

Min Height

28 cm

Caster Size

5 inches

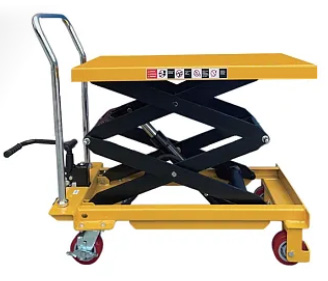

cp-19


Split System


Load Capacity

500 kg

Net Weight

115 kg

Platform Size

905×500 mm

Max Height

1.5 m

Min Height

35 cm

Caster Size

5 inches

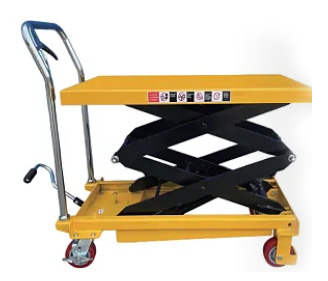

cp-20

Integrated Pump


Load Capacity

500 kg

Net Weight

110 kg

Platform Size

905×500 mm

Max Height

1.5 m

Min Height

36 cm

Wheel Size

5 inches

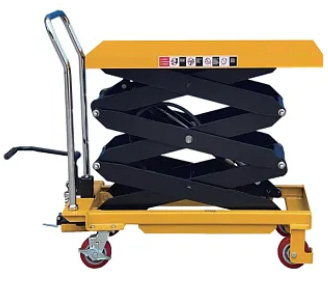

cp-21

Specification

Value

Load Capacity

500 kg

Net Weight

134 kg

Platform Size

905×500 mm

Max Height

2.0 m

Min Height

45 cm

Wheel Size

5 inches

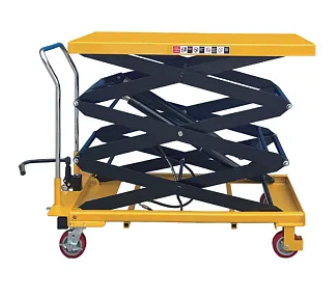

cp-22

Parameter

Value

Load Capacity

500 kg

Self-Weight

300 kg

Tabletop Size

1300×800 mm

Max Height

3.0 m

Min Height

55 cm

Caster Size

6 inches

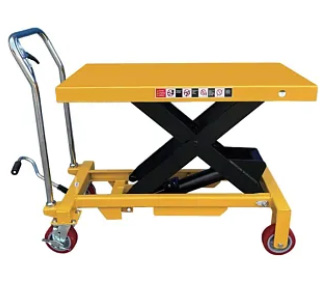

cp-23

Integrated Pump


Load Capacity

1000 kg

Net Weight

112 kg

Platform Size

1000×500 mm

Max Height

1.0 m

Min Height

43 cm

Caster Size

6 inches

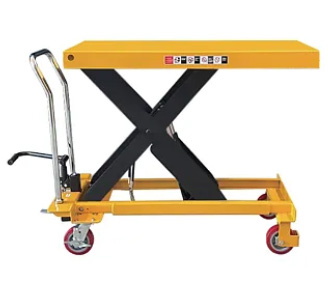

cp-24

Split System


Load Capacity

1000 kg

Net Weight

150 kg

Platform Size

1200×600 mm

Max Height

1.0 m

Min Height

40 cm

Caster Size

6 inches

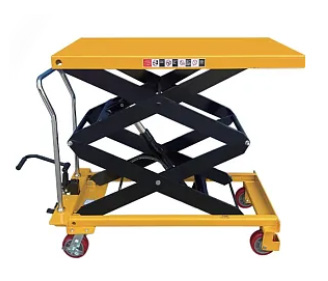

cp-25

Split System


Load Capacity

800 kg

Net Weight

150 kg

Platform Size

1200×600 mm

Max Height

1.5 m

Min Height

50 cm

Caster Size

6 inches

cp-26

Integrated Pump


Load Capacity

800 kg

Net Weight

160 kg

Platform Size

1200×600 mm

Max Height

1.5 m

Min Height

50 cm

Caster Size

6 inches


cp-27

Press Type


Load Capacity

1000 kg

Net Weight

113 kg

Platform Size

1000×500 mm

Max Height

1.0 m

Min Height

43 cm

Caster Size

6 inches

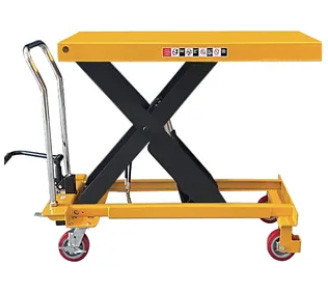

cp-28

Specification

Value

Load Capacity

1500 kg

Net Weight

170 kg

Platform Size

1200×600 mm

Max Height

1.0 m

Min Height

40 cm

Caster Size

6 inches

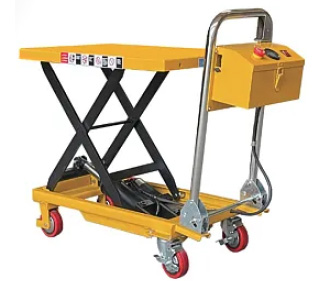

cp-29

Specification

Value

Load Capacity

150 kg

Net Weight

81 kg

Platform Size

700×450 mm

Max Height

0.72 m (72 cm)

Min Height

21 cm

Caster Size

4 inches

Battery

48V/15Ah

cp-30

Specification

Value

Load Capacity

150 kg

Net Weight

65 kg

Platform Size

700×450 mm

Max Height

1.26 m (126 cm)

Min Height

30 cm

Caster Size

4 inches

Battery

48V/20Ah

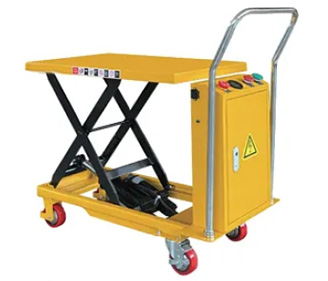

cp-31

Specification

Value

Load Capacity

150 kg

Net Weight

70 kg

Platform Size

700×450 mm

Max Height

0.72 m (72 cm)

Min Height

21 cm

Caster Size

4 inches

Battery

24V/20Ah

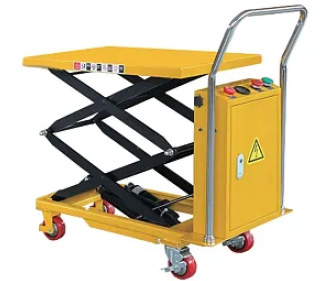

cp-32

Specification

Value

Load Capacity

150 kg

Net Weight

85 kg

Platform Size

700×450 mm

Max Height

1.26 m (126 cm)

Min Height

30 cm

Caster Size

4 inches

Battery

24V/20Ah

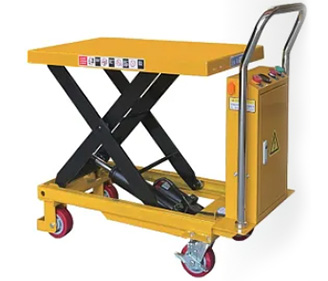

cp-33

Specification

Value

Load Capacity

500 kg

Net Weight

105 kg

Platform Size

905×500 mm

Max Height

0.9 m (90 cm)

Min Height

28 cm

Caster Size

5 inches

Battery

24V/20Ah

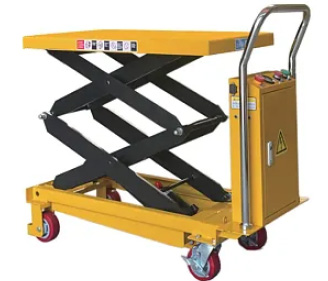

cp-34

Specification

Value

Load Capacity

350 kg

Net Weight

132 kg

Platform Size

905×500 mm

Max Height

1.5 m (150 cm)

Min Height

35 cm

Caster Size

5 inches

Battery

24V/20Ah

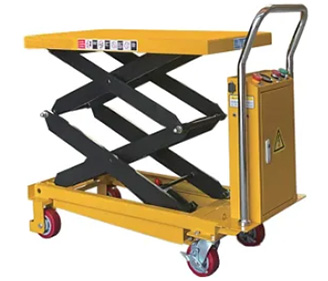

cp-35

Specification

Value

Load Capacity

500 kg

Net Weight

140 kg

Platform Size

905×500 mm

Max Height

1.5 m (150 cm)

Min Height

36 cm

Caster Size

5 inches

Battery

24V/20Ah

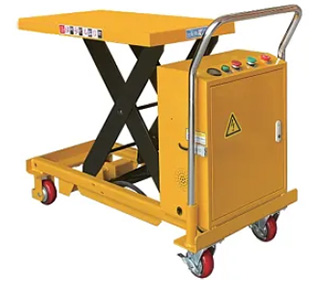

cp-36

Specification

Value

Load Capacity

500 kg

Net Weight

131 kg

Platform Size

905×500 mm

Max Height

0.9 m (90 cm)

Min Height

28 cm

Caster Size

5 inches

Battery

12V/65Ah

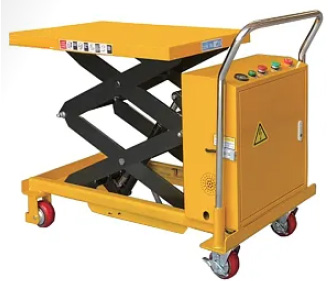

cp-37

Parameter

Value

Load Capacity

500 kg

Self Weight

151 kg

Platform Dimensions

905×500 mm

Maximum Height

1.5 m

Minimum Height

36 cm

Wheel Size

5 inches

Battery

12V 65Ah

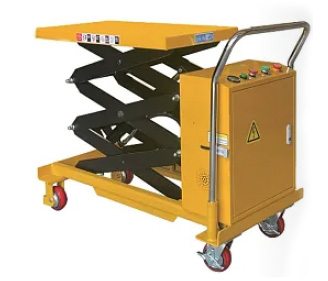

cp-38

Specification

Value

Load Capacity

500 kg

Net Weight

180 kg

Platform Size

905×500 mm

Max Height

2.0 m

Min Height

45 cm

Caster Size

5 inches

Battery

12V/65Ah

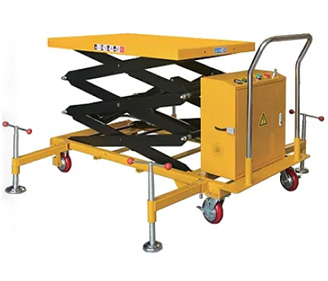

cp-39

Specification

Value

Load Capacity

500 kg

Net Weight

340 kg

Platform Size

1300×800 mm

Max Height

3.0 m

Min Height

55 cm

Caster Size

6 inches

Battery

12V/100Ah

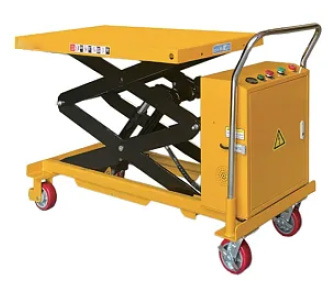

cp-40

Specification

Value

Load Capacity

1000 kg

Net Weight

209 kg

Platform Size

1200×600 mm

Max Height

1.7 m (170 cm)

Min Height

45 cm

Caster Size

6 inches

Battery

12V/80Ah


Certificate
