Securing the right material handling equipment for industrial operations requires absolute precision. Choosing a 120V AC winch means you must carefully balance raw pulling power against standard electrical grid limitations. This dynamic differs vastly from outfitting a 4x4 vehicle using a basic 12V DC setup. Underspecifying your equipment brings serious financial and safety risks, including sudden motor burnout and catastrophic dropped loads. Conversely, overspecifying leads to wasted capital and the constant frustration of tripped facility breakers. Facility managers must get this mathematical balance exactly right to maintain productivity.
This guide delivers a technical framework for evaluating 120V winches accurately. We will explore load physics, thermal thresholds, and crucial facility infrastructure constraints. You will learn exactly how to match electrical capacity to your daily operational realities, ensuring your equipment performs safely and efficiently.
Rated line pull applies only to the first layer of cable on the drum; capacity decreases by up to 10-15% with each subsequent layer.
Rolling loads require different calculations than dead weights; apply a minimum 1.5x safety multiplier for inclines and friction.
120V motors are strictly bound by duty cycles; ignoring intermittent run-time ratings is the leading cause of premature stator failure.
Infrastructure matters; peak amp draw must align with your facility’s 15A or 20A dedicated circuits to prevent continuous breaker tripping.
Manufacturers rate electric winches based on highly specific testing parameters. Understanding these parameters ensures you select appropriate equipment for your facility.
Line pull refers strictly to horizontal pulling capacity. We must clearly differentiate this action from vertical lifting. Winches utilize dynamic brakes designed primarily to handle horizontal resistance. They reel in loads across flat or inclined surfaces. Hoists, on the other hand, feature mechanical holding brakes. Engineers design hoist brakes specifically to secure suspended overhead loads safely.
Using a winch as a hoist violates safety compliance protocols. It creates severe drop hazards. Always deploy the correct equipment for your specific directional application.
Dead weight represents a static load. Rolling loads introduce completely different mathematical variables. Surface friction changes everything. Dragging a skid across smooth concrete presents far less resistance than pulling it across rough gravel. You must also account for incline gradients. Steeper angles dramatically increase the functional weight of your load.
Industry professionals rely on the 1.5x rule. You should always multiply your maximum anticipated load by 1.5. This safety multiplier accounts for unexpected resistance spikes. It prevents motor stalling when wheels hit debris or tracks become misaligned. If you expect to pull 2,000 pounds, you need a winch rated for at least 3,000 pounds.
Cable stacking directly alters the gear ratio of your winch drum. The mechanical advantage diminishes as wire rope spools outward. The first layer of cable sits closest to the drum core. This inner layer provides the maximum rated pulling power.
Subsequent cable layers increase the drum's effective diameter. A larger diameter pulls more cable per revolution but reduces overall torque. You must size up your capacity to ensure adequate pull strength when the drum is fully spooled. If your operation requires pulling from a distance, calculate your capacity based on the outer layers.
Drum Layer | Estimated Pull Capacity (%) | Mechanical Advantage Status |
|---|---|---|
Layer 1 (Core) | 100% | Maximum Pulling Power |
Layer 2 | 85% - 90% | Noticeable Drop |
Layer 3 | 75% - 80% | Significant Reduction |
Layer 4 (Outer) | 65% - 70% | Minimum Pulling Power |
AC motors generate intense internal heat under load. Managing this thermal output requires strict adherence to operational guidelines.
The duty cycle dictates safe operational windows. Manufacturers express this as a percentage over a set timeframe, usually one hour. A 25% duty cycle means the motor can run continuously for 15 minutes. It then requires 45 minutes of rest to cool down. Pushing past these limits guarantees equipment damage.
High-volume processing environments demand robust equipment. Bottlenecks occur when operators must wait for machines to cool. To prevent these slowdowns, facilities require winches with higher duty cycles.
Ignoring intermittent run-time ratings causes premature stator failure. The internal wiring insulation melts, causing fatal electrical shorts. You should look for models featuring built-in thermal protection. Auto-shutoff sensors detect dangerous temperature spikes. They cut power automatically, saving the motor from permanent destruction.
Enclosed 120V motors trap ambient heat easily. Physical limitations govern how fast they can shed this thermal energy. Passive heat sinks rely on surface area to dissipate heat slowly. They work adequately for light, intermittent use.
Continuous indoor warehouse usage demands active cooling mechanisms. Fan-cooled units push air aggressively across the motor housing. Indoor environments often lack natural breezes. Active cooling becomes vital for maintaining productivity in enclosed, temperature-controlled spaces.
Buying powerful equipment solves nothing if your building cannot support it. Infrastructure compatibility dictates ultimate operational success.
Mapping a high-torque electric winch to standard facility wiring requires careful auditing. Standard commercial outlets typically support 15-amp or 20-amp circuits. AC motors require substantial energy to begin moving a load.
Starting watts, or surge watts, often spike far above the listed running watts. A motor might run smoothly at 12 amps but spike to 22 amps upon startup. This surge will instantly trip a standard 20-amp breaker. Dedicated circuits prevent this disruptive downtime. You must verify your panel can handle peak amp draw before finalizing installation.
Your choice of line impacts both longevity and safety.
Galvanized Steel Wire: This material offers exceptional abrasion resistance. It dominates rough industrial environments where cables rub against concrete or metal. However, steel wire stores immense kinetic energy. If it breaks, it causes dangerous snapback.

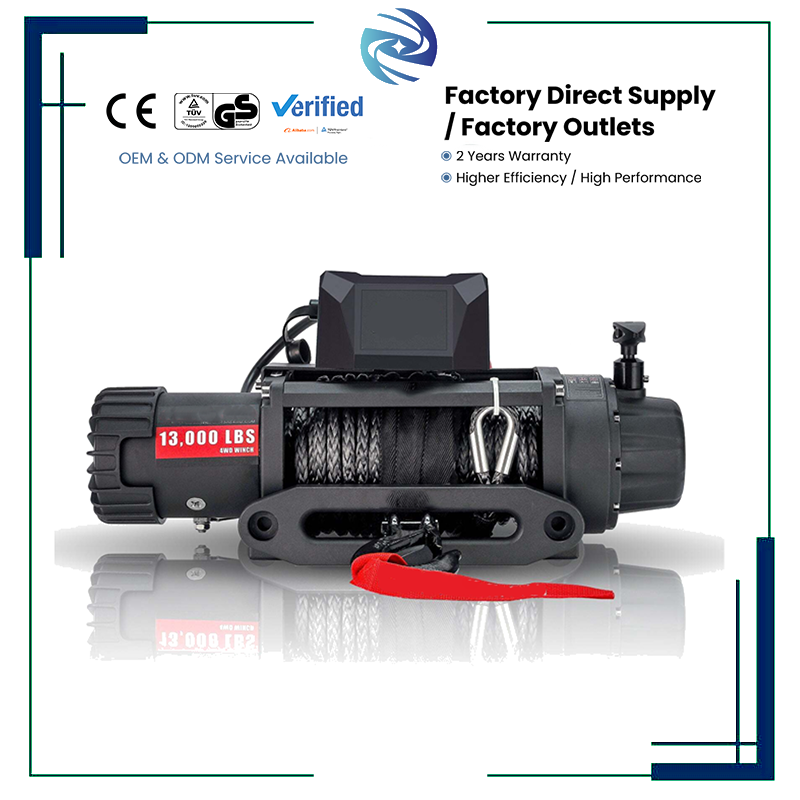

Synthetic Rope: This modern alternative is significantly lighter. It stores very little kinetic energy, making it much safer for operators during a failure. Yet, synthetic fibers require protection. Prolonged UV exposure and chemical spills degrade synthetic strength rapidly.
Horizontal pulling exerts massive shear forces on mounting hardware. Anchoring requirements must exceed the maximum pull rating of the machine. Operators frequently mount units to thick steel plates anchored deep into concrete floors.
You can optimize smaller units using smart rigging. Integrating sheaves and snatch blocks alters the physics of the pull. A single snatch block doubles your pulling capacity. Consequently, it halves your retrieval speed. This mechanical trade-off proves invaluable when dealing with exceptionally heavy, slow-moving items.
Protecting your investment involves scrutinizing the physical build quality and the legal certifications attached to the equipment.
Commercial operations carry substantial liability risks. You must shortlist models featuring recognized regulatory compliance. Look for CE, UL, or CSA certification marks. These badges prove the manufacturer submitted their design to rigorous independent safety testing. Using uncertified equipment in a professional setting voids insurance policies and invites regulatory fines.
Internal gearing determines both efficiency and longevity. You will encounter two primary gear designs.
Planetary Gear Systems: These gears offer rapid line speeds and compact housings. They work perfectly for fast, repetitive tasks. However, they rely heavily on dynamic brakes to hold loads.
Worm Gears: These systems move slower but provide exceptional load-holding ability. The physical design of a worm gear naturally resists unspooling, offering an added layer of mechanical braking reliability.
Durable components still require consistent upkeep. Mechanical failures usually stem from neglected maintenance rather than poor manufacturing. Implement a strict maintenance schedule.
Inspect all cables weekly for fraying, crushing, or kinking.
Lubricate gear assemblies and drum bearings monthly to prevent friction wear.
Check electrical connections for corrosion every quarter.
Replace carbon brushes annually or immediately following intense operational seasons.
Selecting the right vendor impacts your daily operations just as much as selecting the right hardware.
First, evaluate post-sale support. Equipment inevitably requires servicing. You need rapid access to replacement parts. Manufacturers should readily supply detailed wiring schematics to your maintenance team. Prioritize brands with domestic service centers. Shipping heavy machinery overseas for simple repairs causes unacceptable operational delays.
Next, assess warranty clarity. Reputable brands offer transparent policies. They clearly separate the electrical components (motors, solenoids) from the mechanical components (gears, drums). A strong mechanical warranty paired with a realistic electrical warranty signals honest engineering.
Finally, establish clear next steps before issuing a purchase order. Contact your electric winch supplier directly. Request comprehensive spec sheets. Confirm the exact amp-draw charts to ensure compatibility with your facility breakers. Verify current stock lead times to keep your installation projects perfectly on schedule.
Procuring the ideal 120V winch follows a strict, logical sequence. First, calculate your dynamic load and multiply it by 1.5. Next, match this figure against the first-layer pull rating of the drum. Then, verify your facility amperage can handle the starting surge. Finally, select a duty cycle that prevents bottlenecks in your specific workflow.
Prioritize thermal protection: Auto-shutoff features save motors from catastrophic failure.
Select the correct gearing: Match planetary gears for speed or worm gears for holding stability.
Validate electrical infrastructure: Ensure dedicated 20-amp circuits are available to prevent tripped breakers.
Ignore unverified claims: Rely solely on UL/CSA certified specifications rather than raw marketing numbers.
A: No. Winches and hoists serve fundamentally different purposes. Winches utilize dynamic brakes designed for horizontal pulling. Hoists use mechanical holding brakes engineered specifically to secure suspended overhead loads safely. Using a winch for vertical lifting violates safety standards and creates severe drop hazards.
A: Your winch is likely drawing surge amperage that exceeds your breaker's capacity. AC motors require significantly more power to start moving a load than they do to keep it moving. If a winch pulls 15 amps while running, it may spike over 20 amps at startup. You need a dedicated circuit.
A: You lose approximately 10% to 15% of your pulling capacity with each subsequent layer of cable that spools onto the drum. By the time you reach the fourth or outermost layer, your winch may only operate at 65% to 70% of its rated maximum line pull.
A: Yes. Integrating a snatch block creates a mechanical advantage. By routing the cable through a block and back to the anchor point, you effectively double your pulling capacity. However, this mechanical trade-off will halve your retrieval speed during the operation.
