Securing freight isn't just about preventing damage to your shipments. It is a strict regulatory compliance issue and a major liability risk. Selecting the wrong tie-down equipment can result in sudden load shifts, steep DOT fines, and catastrophic highway accidents. Fleet managers often fall into the trap of price-based purchasing. They buy generic equipment instead of matching mechanical specifications to their exact freight profiles. This oversight leaves drivers vulnerable and fleets exposed to unnecessary risks.
You must move beyond simple price comparisons. We recommend standardizing your procurement process based on three critical mechanical factors. These include the Working Load Limit (WLL), hook compatibility matching your existing anchor points, and precise webbing dimensions. This article provides a rigorous, decision-stage framework. We will help you evaluate and shortlist the right equipment for commercial and heavy-duty securement. By following these guidelines, you ensure optimal safety, maintain legal compliance, and dramatically improve your operational efficiency.
WLL vs. Break Strength: Purchasing decisions must be based on Working Load Limit (WLL)—legally mandated to be one-third of the strap's total Break Strength.
Hardware Matching: Hook selection dictates usability; mismatched hooks and anchor points (e.g., using flat hooks on D-rings) compromise load security.
Webbing Specifications: Excess webbing length creates spooling hazards on the ratchet mandrel, while insufficient width concentrates too much pressure on delicate cargo.
Compliance Verification: Any cargo tie-down strap lacking a legible, manufacturer-sewn WLL tag is automatically deemed out-of-service by regulatory inspectors.
Understanding capacity metrics forms the foundation of safe cargo securement. You must differentiate between Break Strength and Working Load Limit. Break Strength represents the absolute point of catastrophic failure. If tension reaches this number, the webbing snaps or the hardware shatters. Working Load Limit represents the maximum safe operating capacity. The industry enforces a strict 3:1 safety ratio. Therefore, a strap rated for a 10,000-pound Break Strength legally holds a WLL of 3,333 pounds. Dynamic forces occur during hard braking, rapid acceleration, and tight cornering. These forces multiply the effective weight of the freight. The 3:1 margin absorbs these shock loads safely.
Commercial transport requires strict adherence to the 50% aggregate rule. The Federal Motor Carrier Safety Administration (FMCSA) mandates this standard. The combined WLL of all tie-downs must equal at least 50% of the total cargo weight. Securing a 20,000-pound steel coil requires straps offering a combined WLL of at least 10,000 pounds. You achieve this by deploying multiple high-capacity straps.
To accurately calculate your aggregate limit, follow these steps:
Determine the total weight of the individual cargo unit.
Divide that total weight in half to find your minimum required aggregate WLL.
Identify the WLL printed clearly on each strap's tag.
Divide the aggregate requirement by the individual strap WLL to determine the minimum number of straps needed.
Add at least one extra strap to account for load length and potential redundancy.
Procurement teams face significant risks when evaluating products based on advertised numbers. Many retail brands highlight massive "Break Strength" figures on their packaging to drive sales. Do not fall for this marketing tactic. Highway inspectors and liability auditors exclusively examine the WLL printed on the tag. Standardize your procurement around certified WLL ratings to protect your drivers and your fleet.

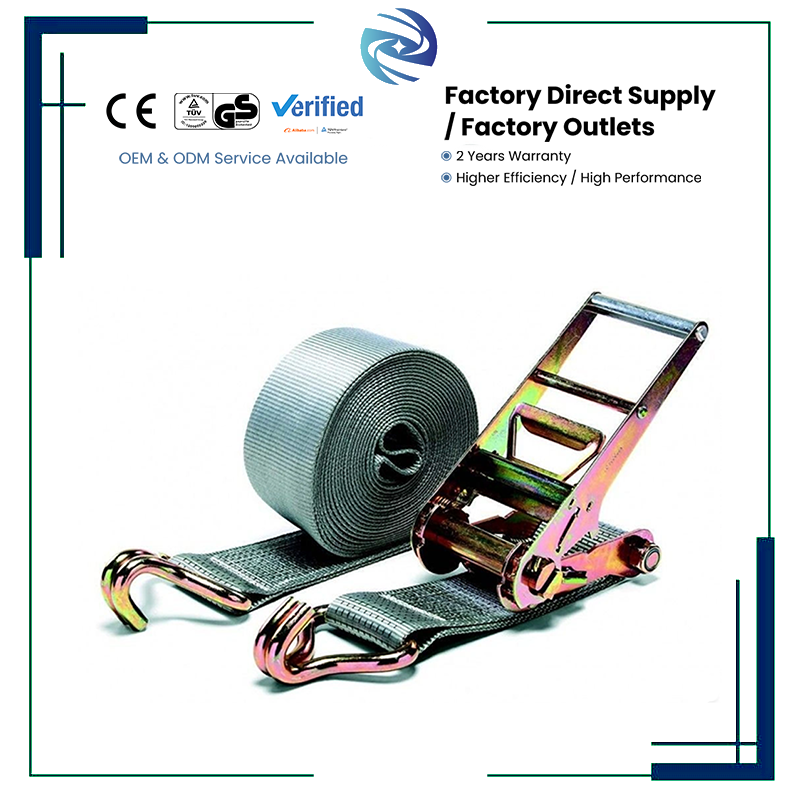

Hook selection dictates overall usability. Purchasing high-capacity webbing means nothing if the hardware does not fit your trailer properly. Evaluating a heavy-duty ratchet strap with hooks requires a direct audit of your fleet's anchor infrastructure. Buying standard hooks for non-standard anchors creates daily operational bottlenecks and severe safety risks.
Flat hooks serve as the best option for flatbed trailers equipped with side rub rails. The wide, flat steel easily slides under the rail and grips the edge securely. However, the flat design inherently causes friction. You must deploy metal or heavy plastic edge protectors. These protectors prevent the trailer rail from slicing the webbing under extreme tension.
Wire J-Hooks, often called Double J-hooks, represent the industry standard for D-rings and O-rings. The double-wire design distributes tension evenly across the anchor point. This configuration prevents the hook from twisting out of the ring during transit. Single J-hooks often twist when the load shifts, but the double-wire design guarantees stability.
S-Hooks and Snap Hooks work ideally for enclosed trailers, utility trucks, and lighter freight. Snap hooks feature integrated spring-loaded safety latches. We consider this a premium safety feature. If the strap temporarily loses tension during a sharp bump, the latch prevents the hook from falling out of the anchor. Enclosed trailers commonly use E-track fittings, which require specific E-track spring fittings rather than traditional hooks.
Cargo Securement Hardware Reference Guide
Hook Type | Ideal Application | Key Mechanical Feature |
|---|---|---|
Flat Hook | Flatbed trailers (Rub rails) | Wide surface area; requires edge protectors. |
Double J-Hook | D-Rings and O-Rings | Twin-wire design prevents twisting and slippage. |
Snap Hook | Enclosed trailers / L-track | Safety latch prevents accidental detachment. |
E-Track Fitting | Interior van walls | Spring-loaded mechanism locks directly into rails. |
Precision matters when selecting webbing dimensions. Strap width directly affects load distribution. A 1-inch strap concentrates intense pressure into a very narrow band. This can crush delicate edges on cardboard boxes or softer freight. We recommend using 2-inch and 4-inch straps to distribute pressure broadly across the cargo surface. Four-inch models drastically reduce the risk of crushing edges while providing massive tie-down capacity for heavy industrial loads.
Many buyers make the common mistake of buying the longest strap available. They assume extra length provides better versatility. Excess length actually introduces severe mechanical dangers. If you secure a low-profile load using a 30-foot strap, you must spool massive amounts of slack around the ratchet mandrel. Wrapping too much excess webbing causes the gear mechanism to jam. The thick roll prevents the ratchet's locking dog from fully engaging the gear teeth. A sudden bump can cause the gear to slip, releasing the tension entirely.
You need to calculate the required length accurately. Measure the over-the-load arc distance. Start at the anchor point on one side, measure up and over the tallest typical load, and down to the opposite anchor. A standard flatbed hauling stacked lumber usually requires 27-foot or 30-foot standard lengths. Enclosed trailers moving pallets rarely need more than 12 to 16 feet. Selecting targeted lengths when sourcing cargo ratchet straps ensures the mandrel only takes two to four wraps of webbing. This guarantees a secure, locked gear.
Keep these sizing best practices in mind:
Measure your tallest routine freight to determine the minimum arc distance.
Add two to three feet to allow for mandrel wrapping and minor adjustments.
Choose wider webbing for fragile edges and narrower webbing for rigid steel pipes.
Never tie up excess slack by wrapping it around the active, tensioned line.
The chemical composition of your tie-down webbing determines its lifespan. We definitively recommend polyester for commercial cargo securement. Polyester offers vastly superior performance compared to nylon. Nylon stretches up to 10% under heavy load. If you use nylon, the strap will loosen as the freight bounces down the highway. You will have to pull over repeatedly to re-tension the gear. Polyester boasts minimal stretch, usually keeping elongation around 2% to 3%. This minimal stretch remains crucial for maintaining locked tension in transit.
Polyester also resists severe environmental degradation. It provides excellent resistance against ultraviolet (UV) radiation from the sun. Sun exposure rapidly breaks down inferior synthetics, causing them to bleach and turn brittle. Furthermore, polyester lacks significant water absorption properties. If it rains, the material sheds water rather than soaking it up. Wet nylon can freeze solid in winter conditions, rendering it impossible to spool or tighten.
Hardware finishes require equal scrutiny. Standard zinc-plated hardware works well for typical inland weather and basic moisture exposure. The zinc coating sacrifices itself to prevent rust from attacking the core steel. However, extreme coastal environments or northern winter routes expose hardware to corrosive road salts and sea spray. In these harsh conditions, upgrade to dichromate finishes or marine-grade stainless steel components. They resist aggressive corrosion much longer.
Examine the webbing for built-in edge protection. Premium features extend the lifecycle of the strap significantly. Manufacturers often weave reinforced threads into the outer edges of the strap. Some add reinforced stitching along the border. These defensive edges protect the structural core threads from abrasive loads like brick, raw timber, and stamped steel parts.
Regulatory compliance does not stop at the purchasing phase. You must manage the lifecycle of your equipment aggressively. The WLL tag represents the most critical legal component of your gear. If an inspector finds a missing, torn, or completely illegible WLL tag, they will legally declare the strap unusable. This happens regardless of the physical condition of the actual webbing. Even a brand-new strap becomes instant trash in the eyes of the DOT if the tag is missing.
You must implement strict out-of-service guidelines based on the Commercial Vehicle Safety Alliance (CVSA) standards. Train your drivers to inspect every single cargo tie-down strap prior to loading.
Retire equipment immediately if you discover any of the following defects:
Burns, melting, or severe charring anywhere on the synthetic material.
Cuts, tears, or snags exceeding the legally allowed length for that specific width.
Severe abrasion where the structural load-bearing fibers are visibly frayed.
Bent, twisted, or cracked steel hardware.
Ratchet mechanisms with missing gear teeth or malfunctioning release levers.
Storage best practices dictate the return on your investment. Throwing wet, untensioned gear into a dark, unventilated toolbox accelerates hardware rust. It also promotes mold and webbing rot. Drivers should hang damp gear in a ventilated area to dry before rolling it up. Neatly spooling the webbing extends its life and prevents knots. Proper care keeps your fleet compliant and stops you from constantly buying replacement gear.
Standardizing your tie-down procurement requires a careful balancing act. You must align load weight capacities through accurate WLL ratings. You must match trailer infrastructure by selecting the correct hook types. Finally, you must accommodate load volume by choosing precise length and width dimensions. Treating these tools as highly engineered safety equipment rather than disposable commodities protects your drivers.
Your next steps involve conducting a thorough anchor-point audit across your entire fleet. Determine exactly what hardware interfaces best with your trailers. Calculate your maximum routine load weights to establish a baseline aggregate WLL requirement. Source your equipment exclusively from reputable manufacturers who provide compliant, durable, and clearly tagged gear. Taking these proactive steps eliminates guesswork, speeds up loading times, and shields your business from catastrophic liability.
A: No. While some manufacturers use color-coding, there is no universal standard. The only legal indicator of capacity is the printed tag.
A: A half-twist prevents the webbing from vibrating violently (wind strumming) at highway speeds, which can cause premature wear and loosen the tension.
A: Never. Tying a knot reduces the WLL of the strap by up to 50% and is an immediate DOT violation.
A: Before every single use, and periodically during transit (e.g., within the first 50 miles, and every 150 miles or 3 hours thereafter).
