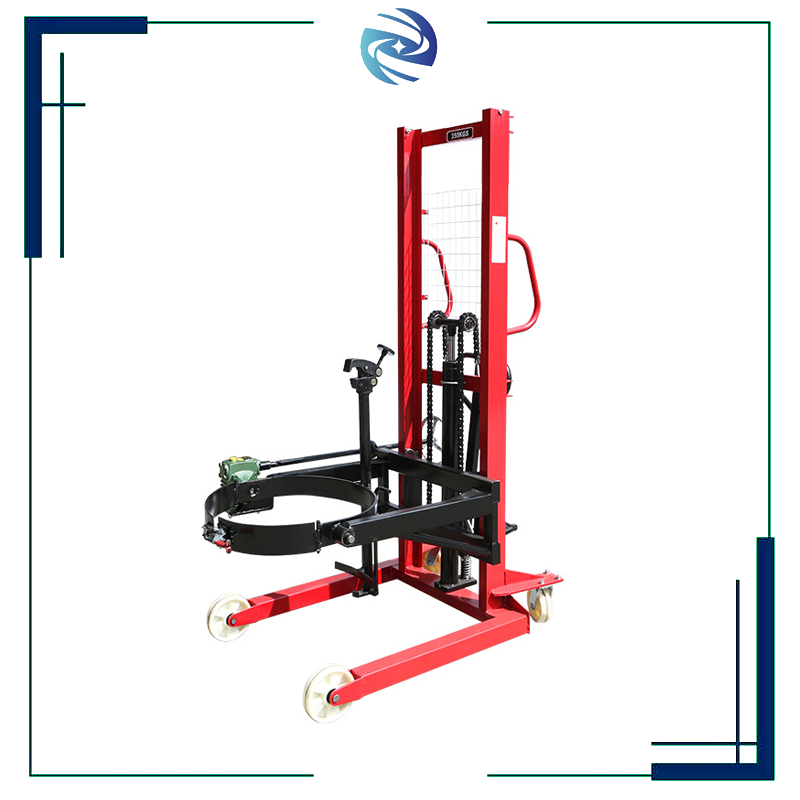

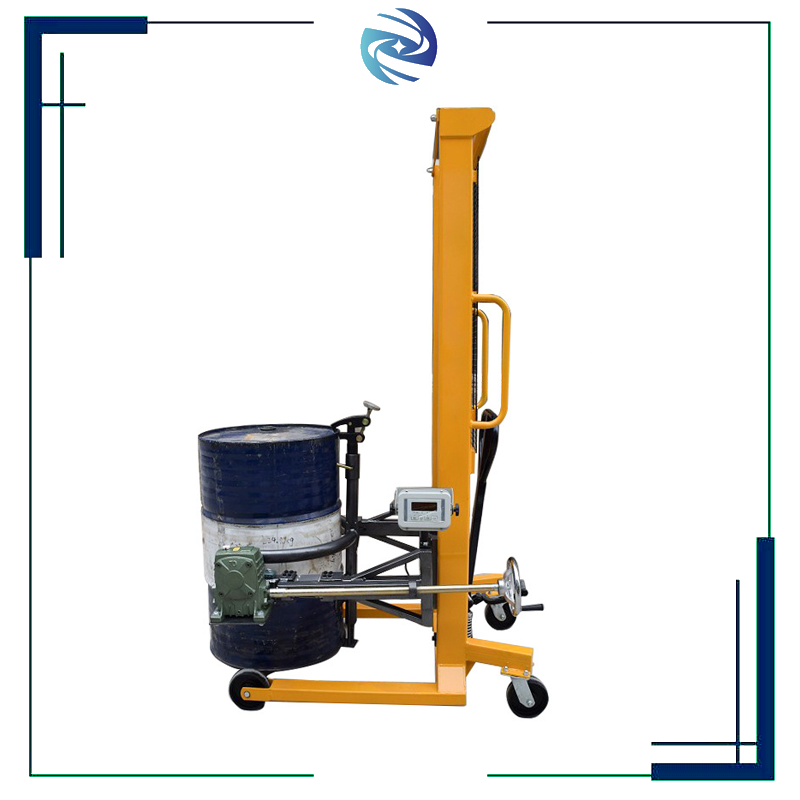

This 350kg manual hydraulic drum stacker is designed for safe lifting, stacking, and rotating oil drums in industrial environments, offering stable handling, ergonomic operation, and high cost efficiency for B2B users.
The 350kg Manual Hydraulic Drum Stacker is a practical and reliable solution for lifting, transporting, stacking, and tilting oil drums in warehouses, workshops, and production facilities. Designed specifically for industrial drum handling, it supports steel and plastic drums and is suitable for both liquid and solid contents.
Equipped with a manual hydraulic lifting system, this drum stacker delivers smooth and controlled lifting without electricity, reducing maintenance requirements and operating costs. The olecranon-style self-locking clamp securely grips a single drum, preventing slipping or falling during lifting and rotation. The mechanical linkage design protects the drum edge while improving operational safety.

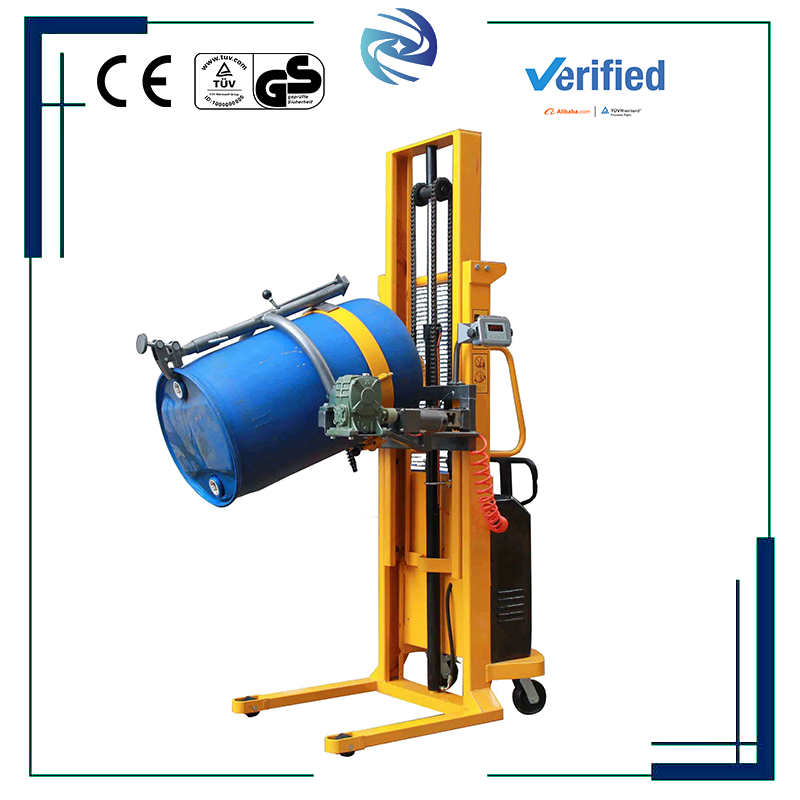

This drum stacker integrates transport and dumping functions in one compact unit. Operators can easily lift drums to the required height and rotate them up to 180 degrees for pouring, significantly improving workflow efficiency in applications involving chemicals, lubricants, coatings, adhesives, food ingredients, and oils.
| Parameter | Value |
| Model | YTD-35 |
| Load Capacity | 350 kg |
| Load Centre Distance (c) | 570 mm |
| Wheelbase (y) | 1115 mm |
| Front Wheel Size | Φ80 × 36 mm |
| Rear Wheel Size | Φ147 × 40 mm |
| Mast Height (Lowered) | 1270 / 1490 mm |
| Max. Lift Height (h3) | 1945 / 2385 mm |
| Mast Height (Extended) | 2100 / 2640 mm |
| Lowered Clamp Height | 385 mm |
| Overall Length | 1580 mm |
| Overall Width | 1050 mm |
| Clamp Width | 840 mm |
| Ground Clearance (Laden) | 22 mm |
| Turning Radius | 1200 mm |
| Service Weight | 235 kg |
| Power Type | Manual Hydraulic |

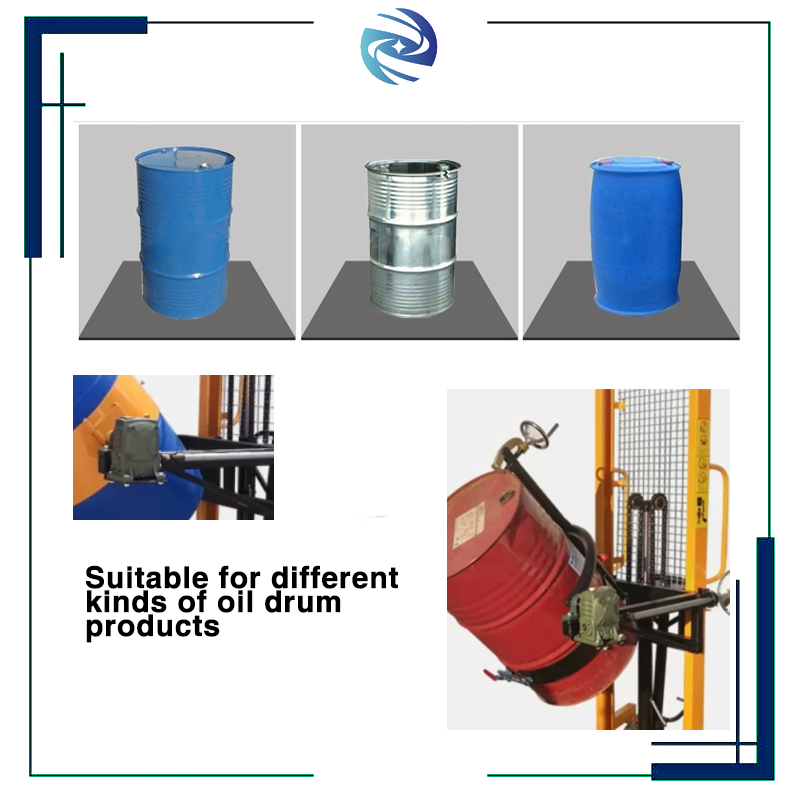

Oil Drum Types

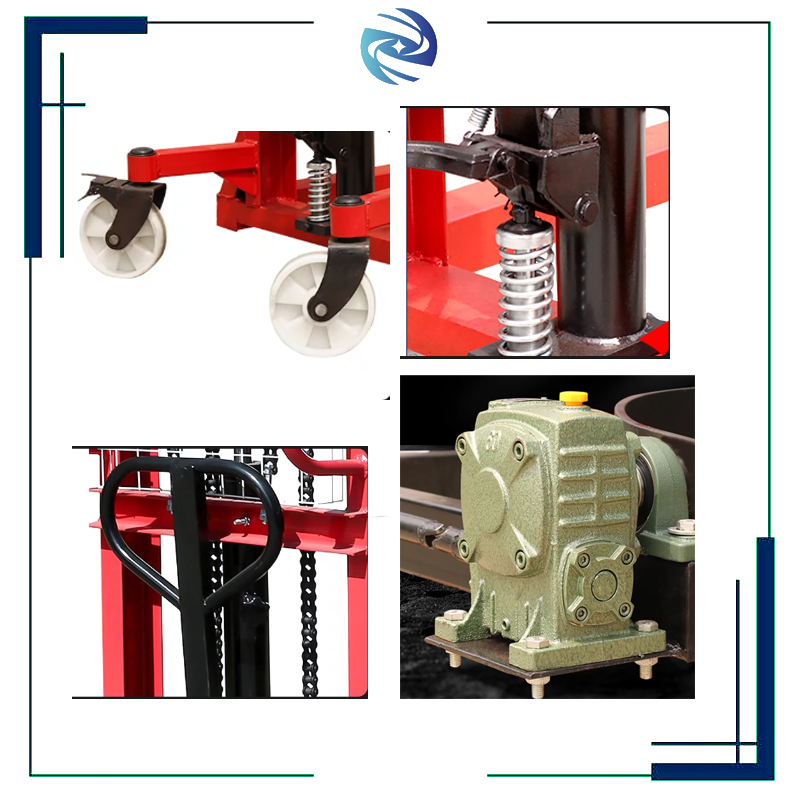

Details1

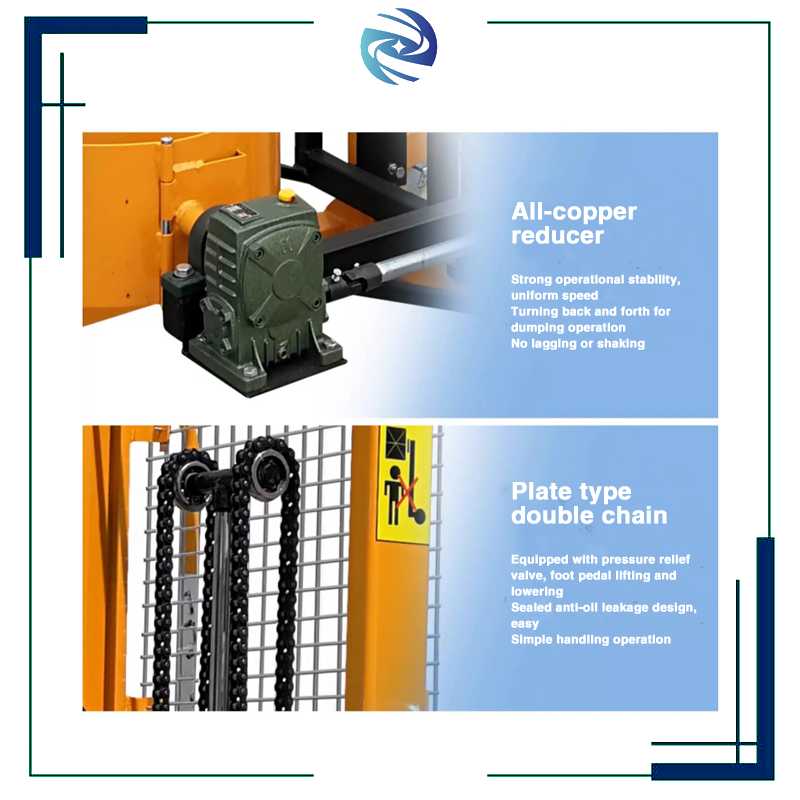

Details2
Packaging & Shipping
Wooden Box/ Customized.
We are a manufacturing-oriented factory specializing in the production of industrial material handling, lifting, and rigging equipment. With years of manufacturing experience, we integrate product design, production, quality control, and export supply to serve industrial users, project buyers, and professional distributors worldwide.
Our core business includes the manufacturing of material handling equipment, lifting and rigging products, and related industrial components. All products are designed based on real working conditions, with a strong focus on structural strength, load stability, and long-term durability, making them suitable for factories, warehouses, construction sites, and heavy-duty applications.
As a factory-direct supplier, we maintain stable production capacity and controlled manufacturing processes, ensuring consistent quality and reliable delivery. Our product specifications are clear and standardized, supporting both bulk purchasing and customized requirements for different markets.
