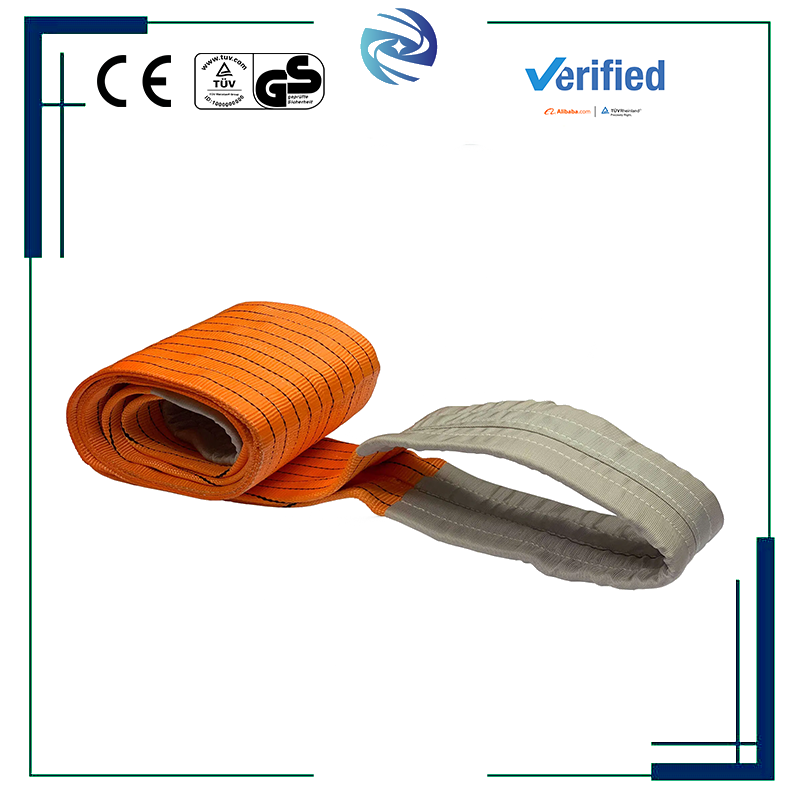

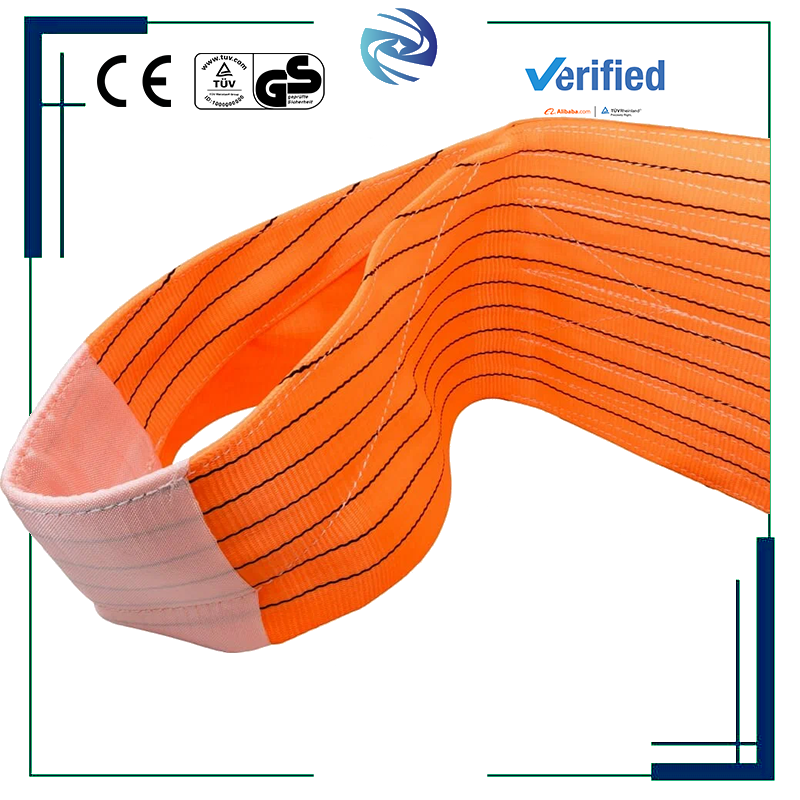

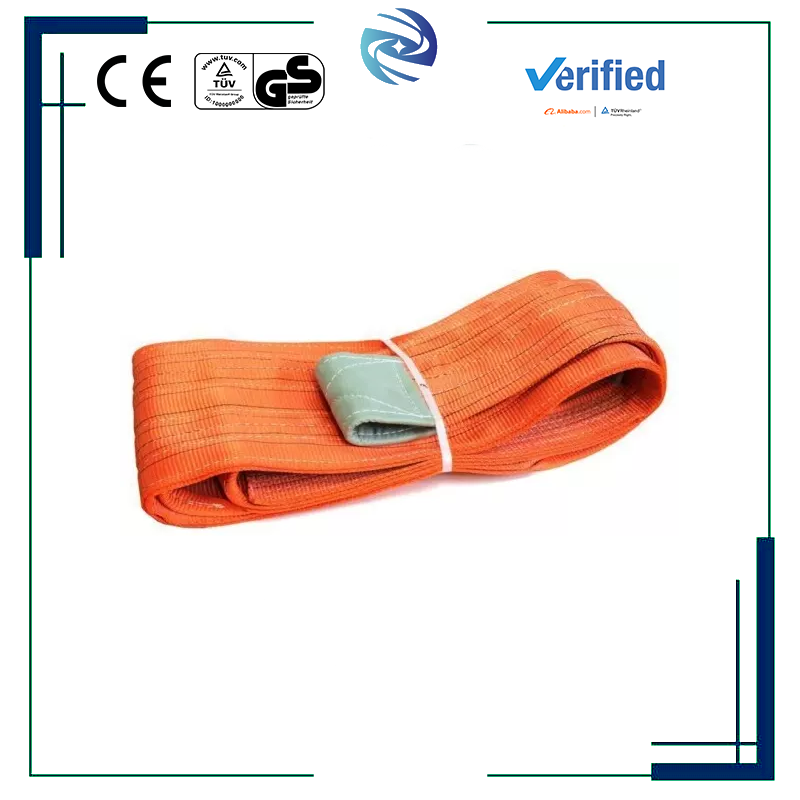

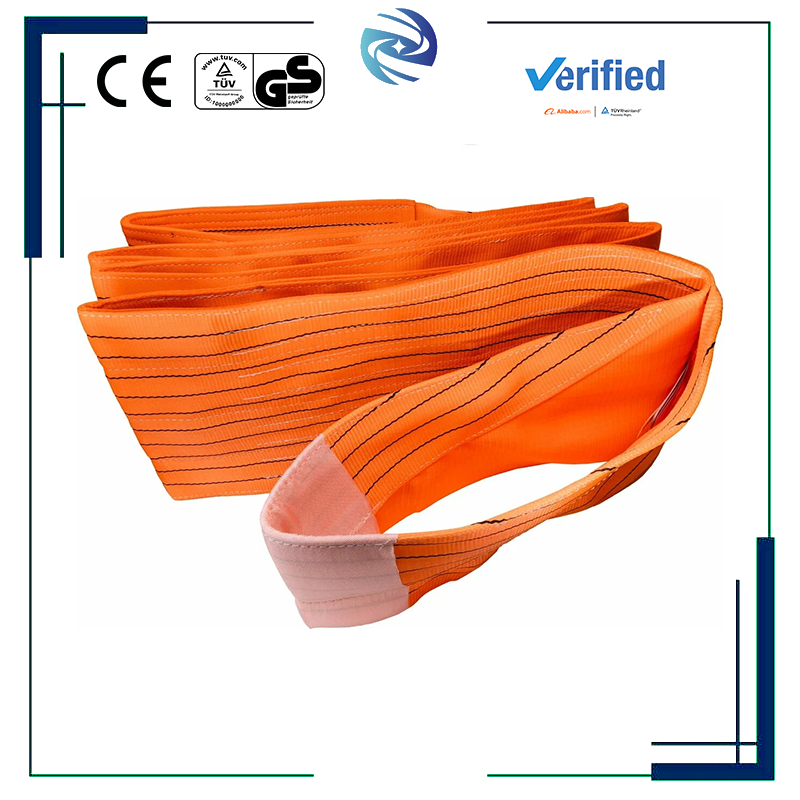

The 10T Flat Webbing Sling with Double Eye design is manufactured from 100% high-tenacity industrial polyester yarn, engineered for heavy-duty lifting and rigging operations.
Product Type: Flat Webbing Sling
Design: Double Eye / Double Layer
Working Load Limit (WLL): 10 Ton / 10,000 kg
Safety Factor Options: 5:1 / 6:1 / 7:1 / 8:1
Material: 100% AA-grade high-strength polyester
Color: Orange (easy load identification)
Webbing Width: 250 mm or 300 mm
Length Range: 1 m to 100 m (custom lengths available)
Elongation at WLL: Approx. 2% – 3%
Length Tolerance: ±3%
Operating Temperature: Approx. -40°C to +100°C
Standards: Compliant with European lifting standards.
Lightweight and flexible, easy to handle and position
Even load distribution for stable and smooth lifting
High safety factor for demanding lifting operations
Bright color for fast identification and safe use
Non-conductive material suitable for various environments
Excellent resistance to wear, corrosion, and aging
Long service life with low maintenance requirements
Cost-effective solution for heavy lifting applications
Widely used across multiple industries, including:
Heavy machinery and equipment lifting
Port handling and cargo operations
Power generation and electrical installations
Steel, chemical, and industrial manufacturing
Shipbuilding and offshore engineering
Transportation and logistics
Construction and infrastructure projects
photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction
Proper handling and storage are essential to maintain the performance and service life of the flat webbing sling. The sling should be stored away from heat sources such as open flames, welding operations, or hot equipment. Prolonged exposure to direct sunlight or ultraviolet radiation should be avoided, as UV can gradually weaken polyester fibers over time.
After each use, the sling should be placed on racks or shelves rather than directly on the ground. Ground contact may introduce moisture, dirt, or sharp debris that can accelerate wear. If the sling is used in humid or wet conditions, it should be fully dried before storage to prevent mildew or material degradation.

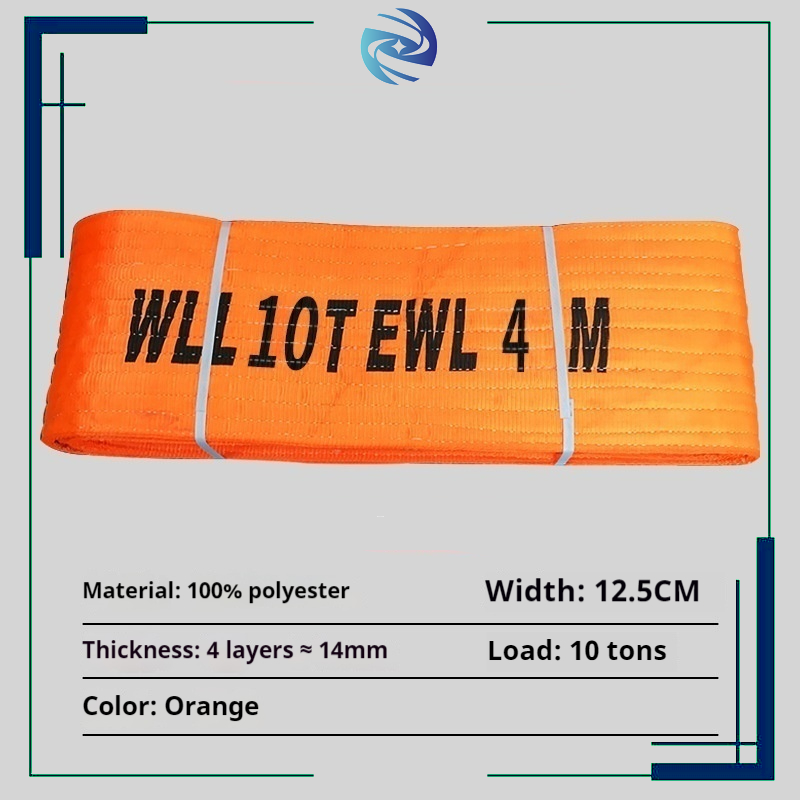

10T4M

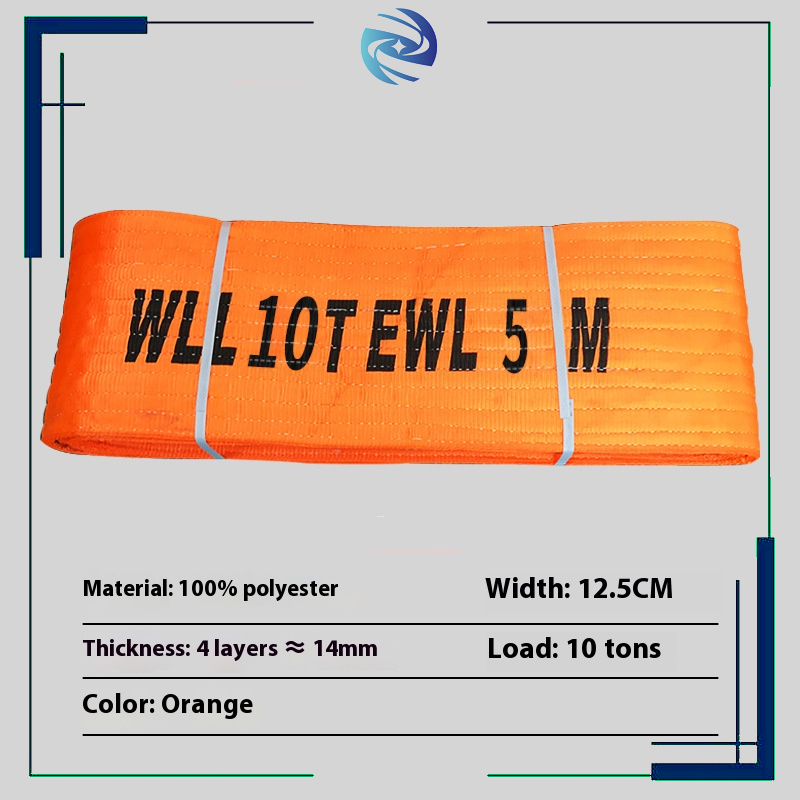

10T5M

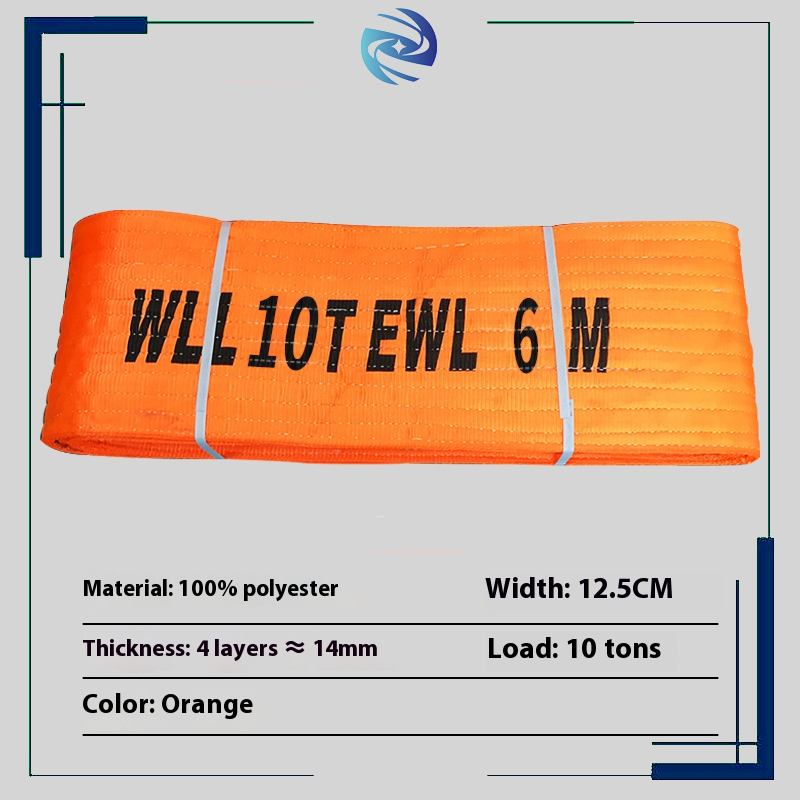

10T6M

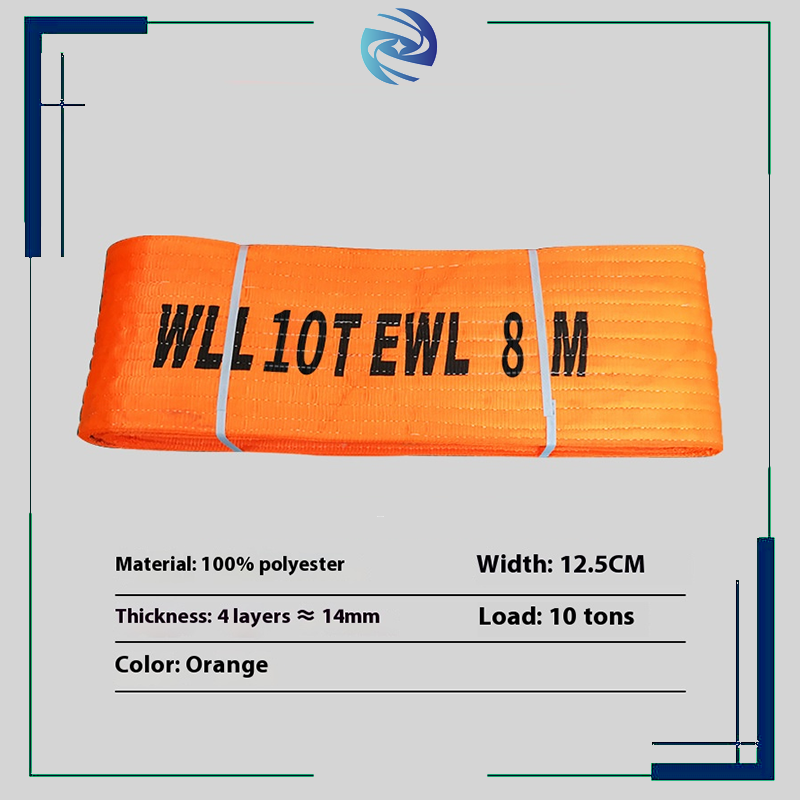

10T8M
10T10M

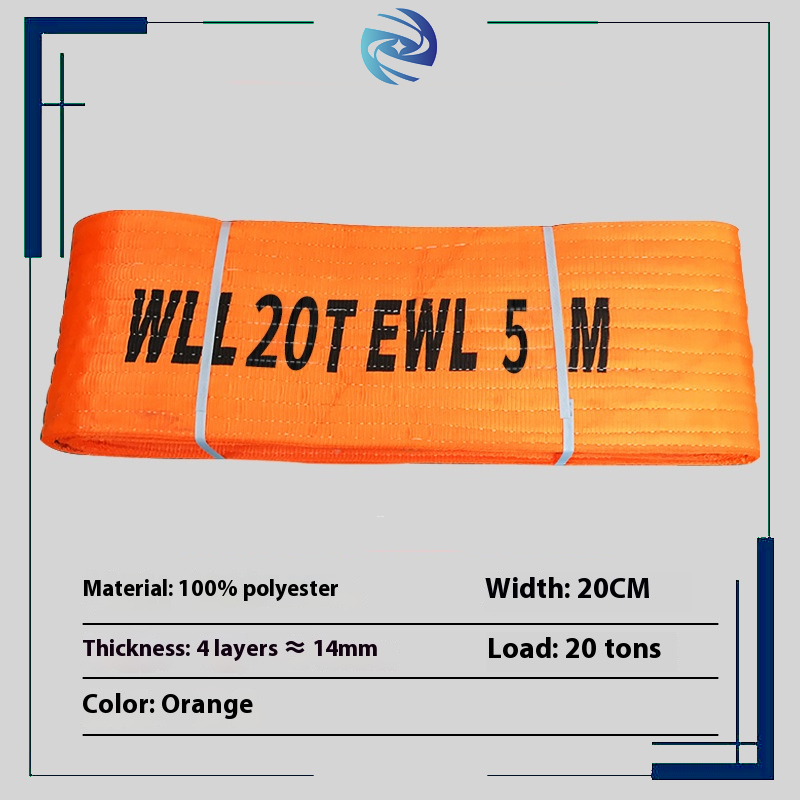

20T5M
Before every lifting operation, the sling must be carefully inspected to ensure it is in good condition. Any sling showing visible damage, abnormal wear, or deformation should not be used. During lifting, the sling should remain flat and untwisted, and knots must never be tied in the webbing, as this significantly reduces load capacity.
The working load limit must not be exceeded under any circumstances. Sharp edges or corners on the load should be protected to prevent cutting or abrasion of the sling. The sling should never be dragged across rough surfaces or pulled out from under a load, as this can cause hidden internal damage.
Sudden shock loading, jerking, or impact forces should be avoided, as these can place excessive stress on the webbing. Polyester material offers good resistance to inorganic acids, but it may be affected by organic acids. If the sling is exposed to chemicals, extreme temperatures, or unusual working conditions, professional guidance should be obtained before continued use.
The sling must be removed from service immediately if there are cuts, deep abrasions, or partial tearing of the webbing. Severe surface wear that reduces the effective width by approximately ten percent indicates that the sling has reached the end of its safe service life.
Any visible deformation, excessive twisting, or structural distortion is a clear sign that the sling should be discarded. Slings showing signs of melting, burning, chemical attack, corrosion, mildew, or fiber loosening must not be reused. Damage caused by sharp objects, edge cuts, or transverse tearing along the webbing edges also requires immediate disposal.
