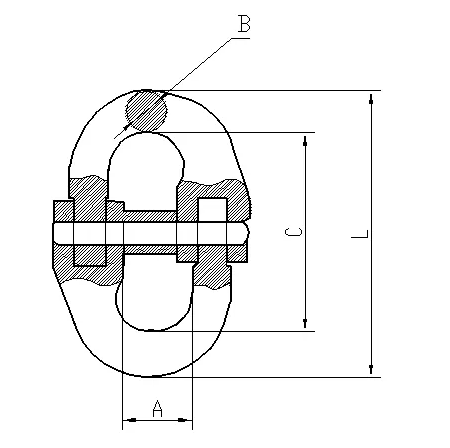

Size(mm) | WLL(t) | A(mm) | B(mm) | C(mm) | L(mm) | Weight(kg) |
6 - 8 | 1.2 | 16.2 | 7 | 42 | 37.00 | 0.075 |
7 - 8 | 2 | 20.5 | 8.5 | 58 | 48.00 | 0.16 |
10 - 8 | 3.2 | 28 | 10.8 | 68 | 60.00 | 0.285 |
13 - 8 | 5.3 | 30 | 15 | 90 | 76.00 | 0.595 |
16 - 8 | 8 | 36.3 | 19.8 | 101.9 | 91.00 | 1.1 |
18 - 20 | 12.5 | 44 | 24 | 121 | 109.00 | 1.8 |
22 - 8 | 15 | 51 | 26 | 141.5 | 130.00 | 3.2 |
26 - 8 | 21.2 | 58 | 30 | 161 | 152.00 | 4.5 |
32 - 8 | 31.5 | 67.5 | 37 | 197 | 190.00 | 9 |
Features:
Key Features & Technical Advantages

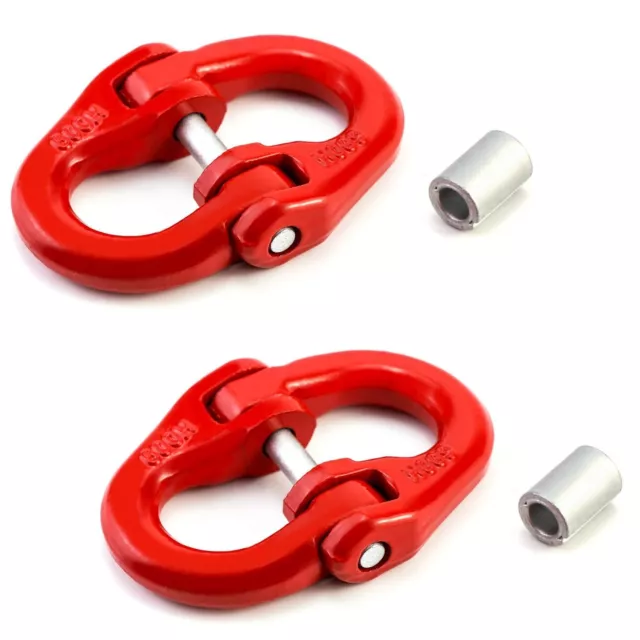

Superior G80 Alloy Steel Construction: Manufactured from high-grade G80 alloy steel, this link provides exceptional tensile strength and impact toughness, guaranteeing reliability under heavy loads.
4:1 Safety Factor – Certified for Safety: Engineered to meet rigorous international standards including EN and ASME, the 4:1 safety factor ensures maximum protection for personnel and equipment during all lifting operations.
Seamless Forging & Heat Treatment: The link is forged as a single piece and undergoes precise heat treatment. This advanced manufacturing process eliminates weak points, significantly enhancing its wear and fatigue resistance for a longer service life.
Weldless Double Ring Design: The innovative, weld-free structure ensures a stronger and safer connection than welded alternatives. It distributes stress evenly, minimizing the risk of failure.
Corrosion-Resistant Coating: A protective coating shields the link from rust and corrosion, making it suitable for both indoor and outdoor applications in harsh environments like shipyards and construction sites.
Smooth Surface Finish: Each link is finished to a smooth surface, which reduces friction on lifting slings and wire ropes, preventing premature wear and damage.

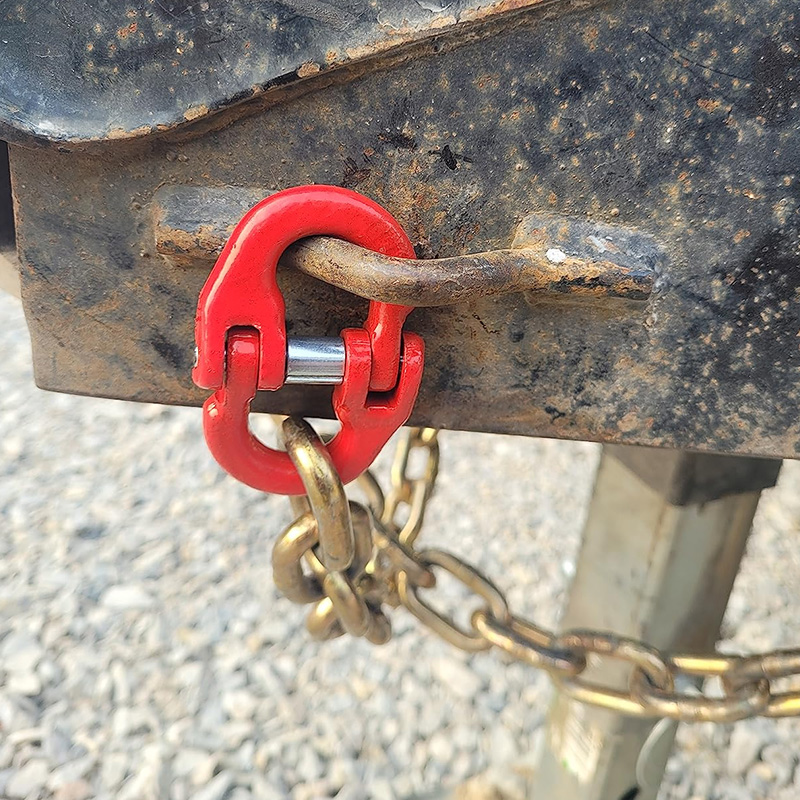

Easy and Versatile Assembly: Designed for quick and hassle-free integration, it is compatible with a wide range of equipment including chain slings, hooks, master links, and various lifting points.
Certificate
 |  |  |  |  |
 |  |  |  |
