Key Features
Forged Alloy Steel Construction – Manufactured from super alloy steel, quenched and tempered for maximum strength and fatigue resistance.
Certified Quality – Produced and tested in accordance with EN1677-4 and compatible with EN818-2 chain sling standards.
High Safety Margin – Individually proof-tested at 2.5 times the Working Load Limit (WLL); fatigue-tested at 1.5 times WLL for 20,000 cycles.
Crack Detection – 100% Magnaflux inspection for every batch to ensure zero defects.
High Breaking Load – Minimum breaking strength is 4 times the WLL, based on two-leg chain slings with 0°–45° lifting angle.

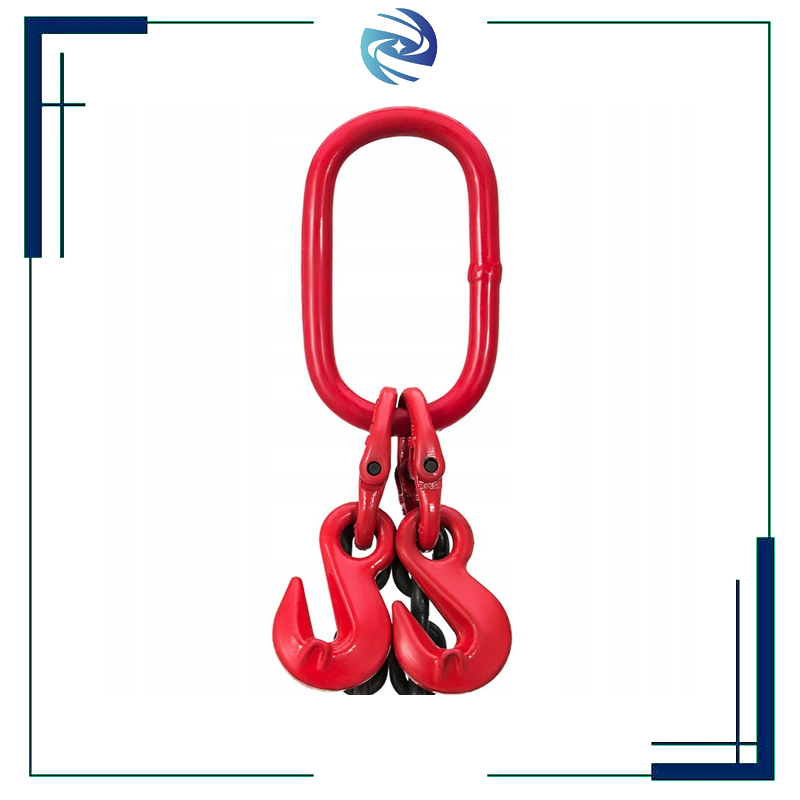

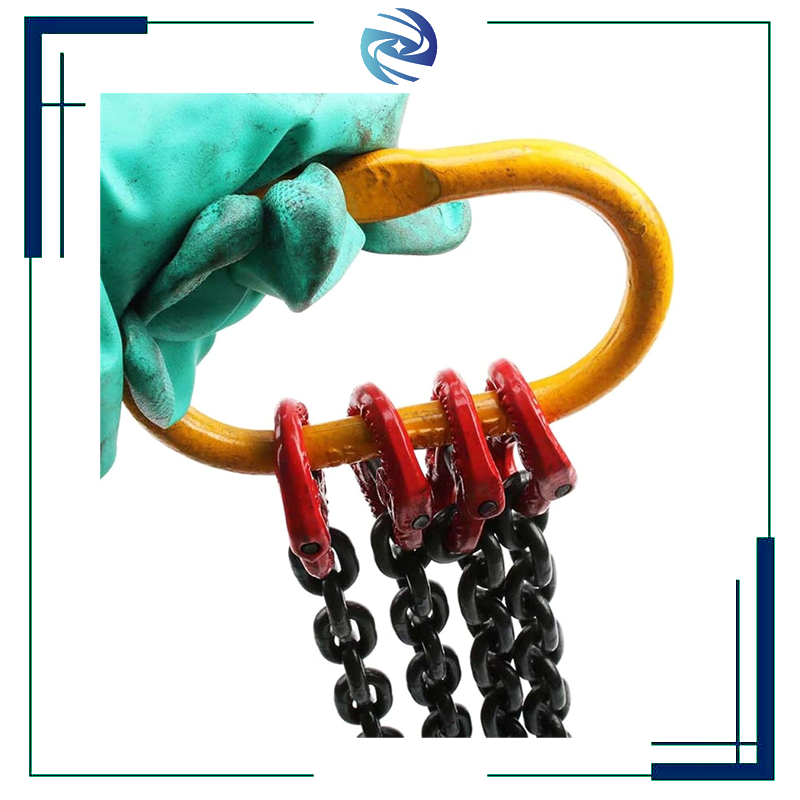

Versatile Connection – Suitable for 1 or 2-leg G80 chain slings, webbing slings, and wire rope assemblies. Flat pressing available for Omega link connection upon request.

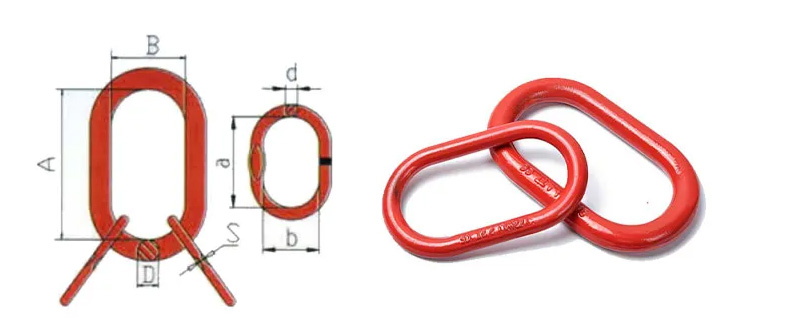

SIZE | WEIGHT/KG | WLL/B.L(t) | A | B | D | a | b | d | s |
3/4 | 1.55 | 4.1/20.5 | 140 | 70 | 20 | 85 | 40 | 14 | 7.6 |
1 | 3.29 | 8.4/42 | 178 | 89 | 25 | 100 | 60 | 18 | 8.4 |
1-1/4 | 7.18 | 14.1/70.5 | 220 | 110 | 32 | 100 | 60 | 22 | 13.5 |
1-1/2 | 12.91 | 21.3/106.5 | 267 | 135 | 38 | 180 | 100 | 28 | 16.5 |
1-3/4 | 21.25 | 33.3/166.5 | 305 | 152 | 45 | 180 | 100 | 35 | 18.5 |
2 | 30.34 | 40.3/201.5 | 356 | 178 | 50 | 180 | 100 | 38 |
Performance in Offshore Applications
High Strength and Toughness – Resists dynamic loads from waves, tides, and vessel motion; prevents brittle fracture.
Excellent Corrosion Resistance – Alloy composition with Cr, Ni, and Mo ensures long-term protection in marine environments.
Superior Wear Resistance – Maintains dimensional stability and reduces abrasion against mooring chains or ropes.
Precision Manufacturing – High-accuracy forging minimizes stress concentration and improves structural integrity.
Strong Connection Performance – Provides reliable load transfer between mooring ropes, chains, and buoys.
Enhanced Fatigue Resistance – Withstands repeated cyclic loads for extended service life.
Certificate
 |  |  |  |  |
 |  |  |  |
