Industrial lifting operations carry incredibly high stakes across construction, maritime, and manufacturing sectors. Efficiency in material handling must never compromise site safety or regulatory compliance. A single dropped load can result in catastrophic site damage. It can cause severe worker injuries or trigger strict legal penalties. To manage these operational risks, rigging professionals often turn to endless webbing slings. We commonly refer to them as Type 5 slings in the industry. They offer a highly versatile lifting solution due to their continuous loop design. However, this same adaptability often leads to dangerous site-level misuse. Crews might apply them improperly around rough concrete surfaces. They might use incorrect hitch angles during complex maneuvers. To maximize return on equipment investment and prevent catastrophic rigging failures, procurement and safety teams need a clear strategy. You must understand exactly where endless slings excel. You must also know where they typically fail under pressure. Furthermore, you need to evaluate them against alternative synthetic options. This comprehensive guide will walk you through optimal applications, hidden site risks, and the critical compliance standards necessary to keep your facility secure.
Wear Rotation: The continuous loop design allows users to rotate hook and load contact points, significantly extending the lifespan compared to traditional eye-and-eye slings.
Optimal Hitches: Endless webbing slings provide superior grip in choker and vertical hitches, making them ideal for handling cylindrical or pipe-like loads.
Primary Vulnerability: The leading cause of endless sling failure is severe abrasion and cutting caused by a lack of proper edge protection during evaluation and execution.
Compliance Matters: Selecting slings with traceable tags and adherence to ASME B30.9 standards is non-negotiable for site compliance and liability reduction.
Rigging operations often face rapid equipment degradation. Lifting repetitive loads continuously grinds down synthetic fibers over time. This ongoing damage drives up replacement costs significantly. It also forces unexpected operational downtime while crews search for replacement gear. Standard eye-and-eye slings concentrate wear at specific fixed points. When the woven eyes degrade from constant crane hook friction, the entire unit becomes useless. You have to discard it, even if the body remains pristine.

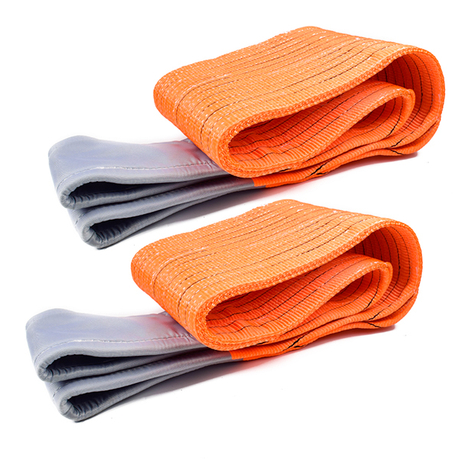

This brings us to the core advantage of Endless webbing slings. We must look closely at the continuous loop architecture. You can shift the wear points manually before every single lift. If a section rests heavily on a crane hook today, you can rotate the loop tomorrow. This simple technique effectively distributes friction across the entire sling perimeter. You no longer concentrate damage at a fixed eye. This rotation benefit effectively extends the useful life of the equipment. Over months of heavy use, this saves substantial procurement budget.
Load distribution represents another major functional benefit. Traditional wire rope or alloy chain can crush fragile materials instantly. They concentrate immense lifting pressure on very narrow contact lines. Flat synthetic webbing solves this problem perfectly. The flat surface distributes pressure safely across fragile or finished loads. You drastically reduce product damage rates during transport.
We highly recommend these slings for several ideal applications:
Pipe handling and cylindrical material positioning. They offer excellent choke mechanics for round, slick surfaces.
Lifting polished or painted components. The soft synthetic fibers ensure cosmetic damage remains entirely avoidable.
Low-headroom lifts. You can easily execute dual-wrap choker hitches in tight indoor manufacturing spaces.
Procurement teams often struggle to choose between various synthetic options. You need to compare flat continuous loops against tubular continuous loops. This comparison brings shortlisting clarity for your rigging catalog.
Webbing provides a broader, flatter surface area. This profile creates superior load stability for wide or ungainly objects. The flat fibers grip the load securely. Conversely, a Round Sling naturally bunches up under tension. The tubular design compresses tightly to fit narrow hardware contours. This bunching provides high ultimate strength but sacrifices surface area contact.
Inspection realities also divide these two rigging solutions. Rigging supervisors must prioritize visual evidence of safety. Flat webbing exposes its load-bearing yarns directly to the outside environment. If a sharp edge cuts the fibers, the damage remains obvious to anyone looking. Visual safety inspections become straightforward and reliable. Round slings operate quite differently. They hide their internal load-bearing core yarns inside a protective outer jacket. You cannot simply look at the jacket to confirm internal structural integrity. Inspectors must rely heavily on tactile inspection techniques. They must physically feel along the length for internal breaks, hard lumps, or structural inconsistencies.
Decision criteria usually come down to two defining factors. Choose flat endless webbing when surface area protection and visual inspection confidence are paramount. Choose round slings for maximum weight capacity in a very compact rigging footprint.
Rigging Feature | Endless Webbing Slings | Synthetic Round Slings |
|---|---|---|
Physical Profile | Broad and flat, spreads pressure evenly | Tubular, bunches tightly under load |
Inspection Method | Highly visual (load-bearing yarns exposed) | Tactile (load-bearing core hidden in jacket) |
Primary Advantage | Excellent load stability and surface protection | Extremely high capacity in a compact footprint |
Let us address the harsh implementation realities found on modern job sites. Most synthetic sling failures do not stem from manufacturing defects. They result directly from operational misuse and poor planning. Rigging crews often underestimate how vulnerable synthetic fibers remain under extreme lifting tension.
The "edge cut" hazard remains the absolute Achilles' heel of any Webbing Flat Sling. Many users incorrectly assume only razor-sharp steel can sever synthetic material. This is a highly dangerous misconception. Edges do not have to be razor-sharp to shear synthetic fibers. Under high lifting tension, even a blunt concrete corner can slice through webbing instantly. A slightly rough metal bevel acts like a saw blade against tight polyester. Unprotected edges cause sudden, catastrophic load drops.
Improper hitch angles introduce another severe risk category. Crews often use choker hitches to secure tricky, unbalanced loads. However, choke angles less than 120 degrees severely compromise the equipment. The angle places intense crushing stress on the webbing itself. If you use an aggressive choke angle, you must derate the Working Load Limit (WLL). Failing to calculate this reduction leads to rapid equipment overloading.
Pinch points and hardware mismatches occur frequently on busy construction sites. Sometimes, workers place endless slings on hooks featuring a mismatched internal radius. The flat webbing then bunches up, folds over, and creases aggressively. This hardware mismatch forces the entire load onto just a few outer yarns. Uneven stress-loading dramatically lowers the actual breaking strength of the synthetic fibers.
Finally, we must account for environmental degradation. Exposing nylon or polyester to incompatible chemicals destroys them rapidly. Extreme ultraviolet (UV) radiation breaks down fiber integrity over long periods of outdoor storage. Furthermore, you must never expose these synthetics to ambient or surface temperatures exceeding 194°F (90°C).
We must always anchor our equipment evaluations in strict industry standards. For North American operators, ASME B30.9 and OSHA 1910.184 dictate absolute compliance rules. Regulatory bodies do not tolerate guesswork or assumptions in lifting operations.
Tagging requirements form the baseline of all site compliance. A lifting sling becomes instantly non-compliant if the manufacturer's tag is missing or illegible. You cannot guess or estimate the lifting capacity. The tag must explicitly display the WLL for vertical, choker, and basket hitches. It must also list the specific material type and the manufacturer's exact name. If you cannot read this vital data clearly, you must remove the unit from service immediately.
Safety officers need a concrete framework for visual rejection criteria. We recommend documenting explicit reasons to destroy damaged equipment. Remove synthetics from service if you observe any of the following defects:
Acid or caustic burns appearing anywhere on the material surface.
Melting, charring, or weld spatter on any part of the webbing.
Snags, deep punctures, visible tears, or heavy localized abrasion.
Broken or worn stitches located specifically in the load-bearing splices.
Severe UV bleaching, indicating degraded chemical fiber strength.
Effective risk mitigation requires implementing robust, repeatable systems. We strongly recommend deploying a strict, documented pre-use inspection protocol. Every single rigger must check the equipment before every shift begins. Additionally, mandate a scheduled periodic inspection process. A formally designated competent person must perform and document these thorough evaluations periodically.
Procurement teams hold significant power in preventing future rigging accidents. Buying the right specification matters just as much as executing the lift correctly. You must balance synthetic material properties against specific site demands.
Material selection usually comes down to Nylon versus Polyester options.
Nylon: This synthetic material offers approximately 10% stretch under full operational load. This elasticity proves excellent for absorbing minor shock loads during rough crane operation. However, nylon absorbs water and can lose strength when fully saturated.
Polyester: This synthetic material provides only about 3% stretch under tension. It delivers superior load control and minimal load bounce. Polyester also remains highly resistant to acidic environments and does not absorb ambient moisture.
You must also understand the relationship between width and capacity. Widening the woven webbing naturally increases the WLL. It accomplishes this while maintaining a low-profile flat shape. However, you must carefully match this width to existing crane hooks or rigging shackles. If you buy a wide sling but only utilize narrow shackles, the webbing will crush and crease dangerously. Always audit your connection hardware dimensions before ordering wider synthetics.
Finally, we strongly advocate for purchasing complementary edge guards immediately. You should buy Kevlar sleeves or magnetic corner protectors at the exact point of sling procurement. Do not wait for a dropped load accident to realize you need edge protection. Supplying protective sleeves proactively ensures safe rollout on the very first operational day.
Endless webbing slings serve as a highly efficient, cost-effective rigging asset across multiple industries. They deliver immense operational value when crews leverage their wear-rotation capabilities properly. Their superior load distribution mechanics protect delicate cargo perfectly. By shifting contact points daily, you avoid localized wear and protect expensive loads simultaneously.
However, consider this a final, urgent warning. Their operational lifespan and overall site safety remain directly tied to rigorous edge protection. You must also adhere strictly to visual inspection standards outlined by ASME. Without deploying protective sleeves, even the highest-quality synthetics will fail against rough edges under tension.
We encourage procurement buyers to audit their current lifting applications immediately. Consult a qualified rigging equipment manufacturer to match specifications exactly to your load profiles. Walk your facility floors and verify that all current inventory features legible, compliant tagging. Take these actionable steps today to secure a safer, far more efficient job site.
A: No. Under ASME B30.9, load-bearing synthetic webbing cannot be repaired. It must be destroyed and removed from service. Only non-load-bearing protective sleeves may be repaired or replaced.
A: Both nylon and polyester slings should not be used in environments exceeding 194°F (90°C) or below -40°F (-40°C).
A: Because the continuous loop essentially provides two lifting legs per side when placed in a true basket hitch, it significantly increases the lifting capacity compared to a vertical hitch, provided the D/d ratio (diameter of the load vs. sling width) is adequate. Always refer to the manufacturer's specific tag.
