In the world of construction, manufacturing, and logistics, the unassuming steel chain is a critical link in the chain of command. But not all chains are created equal. Grade 80, or G80, alloy steel represents the industry-wide benchmark for overhead lifting safety and reliability. This high-strength, heat-treated material is specifically engineered to handle immense loads without compromise. Its adoption marked a significant shift away from lower-grade carbon steel chains, which lacked the necessary ductility and fatigue resistance for high-risk applications. This guide serves as a technical and commercial deep dive into the G80 standard. We will explore the metallurgy that gives it superior strength, compare its performance against other grades, and outline the essential procurement and safety protocols to ensure operational excellence.
Strength-to-Weight Ratio: G80 provides the optimal balance of high load capacity and manageable self-weight.
Safety Factor: Adherence to the 4:1 Design Factor (Safety Factor) required for overhead lifting.
Compliance: Essential standards include EN818-2, ASTM A973, and NACM 2010.
Durability: Superior resistance to abrasion and fatigue compared to G30, G43, or G70 chains.

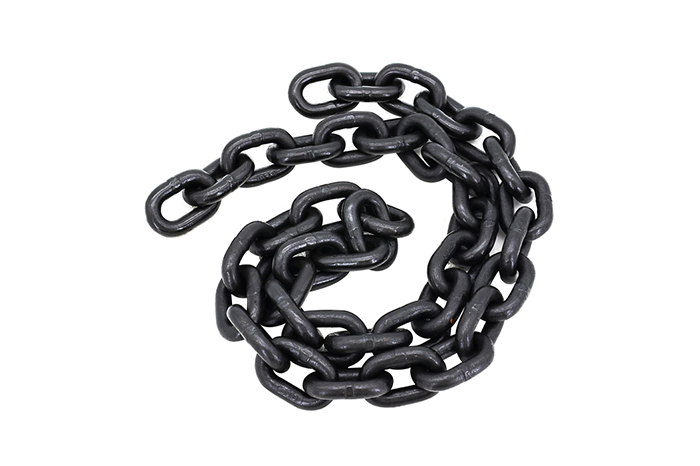

The performance of a Lifting Chain is not accidental; it is the direct result of precision engineering at a molecular level. G80’s status as the industry standard comes from a carefully controlled combination of chemical composition and advanced thermal processing. This synergy creates a material that is both incredibly strong and resilient enough to provide warnings before failure.
Unlike basic carbon steel, G80 is a sophisticated alloy. Small, precise additions of specific elements transform its properties. The primary alloying agents include:
Nickel (Ni): Increases toughness and impact strength, especially at lower temperatures. It helps prevent the chain from becoming brittle in cold environments.
Chromium (Cr): Boosts hardness, wear resistance, and the material's ability to be hardened through heat treatment. It also provides a degree of corrosion resistance.
Molybdenum (Mo): Enhances strength, particularly at elevated temperatures, and improves the overall hardenability of the steel.
This "Ni-Cr-Mo" formulation is the foundation of G80’s superior mechanical properties, setting it apart from lower-grade chains which are primarily iron and carbon.
The raw alloy is only half the story. The true magic happens during heat treatment, a two-stage process that unlocks the material's full potential.
Quenching: The formed chain is heated to a critical temperature (typically above 1,500°F or 815°C) until its internal crystal structure changes. It is then rapidly cooled, or "quenched," in a liquid bath (like oil or water). This process locks in a hard, brittle crystalline structure known as martensite.
Tempering: A quenched chain is too brittle for practical use. Tempering involves reheating the chain to a lower, precisely controlled temperature and holding it there. This process relieves internal stresses and modifies the martensite, increasing ductility and toughness while retaining high strength.
This delicate balance is key. The process creates a chain that can resist abrasion and deformation under load (hardness) yet absorb shock and bend without snapping (ductility).
A critical safety feature engineered into every G80 lifting chain is its minimum elongation requirement. Industry standards mandate that the chain must stretch by at least 20% of its original length before it fractures. This property is a direct result of the ductility achieved during tempering. It serves as a vital visual indicator of an overload condition. An operator who sees a visibly stretched chain link knows immediately that the chain has been compromised and must be removed from service. This warning system prevents catastrophic failure, where a chain might otherwise snap without any prior indication.
In operations involving Heavy equipment lifting, chains are rarely loaded just once. They endure thousands of lifting cycles over their lifespan. Fatigue is the weakening of a material caused by repeatedly applied loads. G80's alloy composition and refined grain structure from heat treatment give it a high fatigue life. This means it can withstand a greater number of loading cycles before microscopic cracks begin to form and propagate, ensuring long-term reliability in demanding industrial environments.
Choosing the correct chain grade is a critical decision that balances performance, cost, and safety. While G80 is the standard, understanding its place relative to other common grades is essential for making an informed choice and avoiding dangerous misuse.
Grade 70 chain, often called "transport chain" or "binder chain," is easily recognized by its typical gold chromate finish. While it is a strong carbon steel chain, it is strictly prohibited for overhead lifting. The primary reasons are:
Lack of Heat Treatment for Ductility: G70 is heat-treated for strength but not tempered to achieve the ductility required for lifting. It does not meet the 20% elongation requirement.
Sudden Failure Mode: Without sufficient ductility, a G70 chain is more likely to snap suddenly when overloaded, offering no visual warning of impending failure.
Using G70 for lifting is a serious violation of safety standards like those from OSHA. Its sole purpose is for load securement, lashing, and tie-down applications in transportation.
G100 and G120 are higher-performance alloy chains designed for more specialized applications. They offer a greater strength-to-weight ratio than G80, which can be a significant advantage in certain scenarios.
| Feature | Grade 80 (G80) | Grade 100 (G100) | Grade 120 (G120) |
|---|---|---|---|
| Strength Increase (vs. G80) | Baseline | Approx. 25% Higher WLL | Approx. 50% Higher WLL |
| Primary Advantage | Best overall value and versatility | Higher strength-to-weight ratio | Highest strength-to-weight ratio, superior wear resistance |
| Common Use Case | General construction, manufacturing, rigging | Confined spaces, mobile cranes, applications where chain weight is a factor | Extreme lifts, harsh environments (e.g., mining), specialized rigging |
| Cost | Standard | Premium | Highest Premium |
| Identification | Embossed with "8" or "80" | Embossed with "10" or "100" | Embossed with "12" or "120" |
For the majority of industrial applications, G80 provides the best Total Cost of Ownership (TCO). Its strength is more than sufficient, it is widely available, and its cost is economical. The premium for G100 is justified when the weight of the chain itself is a limiting factor. For example, on a mobile crane with a long boom, using a lighter G100 chain can increase the net lifting capacity. G120 is a premium solution for the most demanding jobs where maximum strength and durability are needed to accomplish the lift safely.

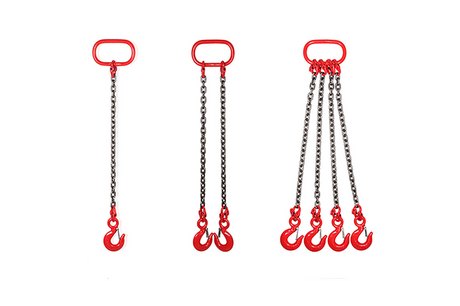

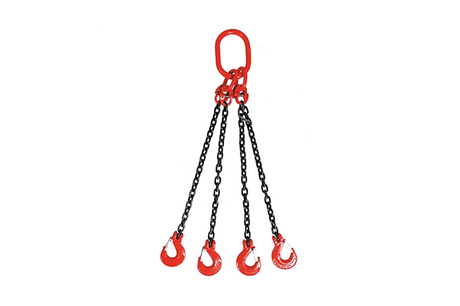

A critical safety rule is to never mix grades in a single lifting assembly. A chain sling is only as strong as its weakest component. If a G100 chain is fitted with a G80 hook, the entire sling must be rated down to the G80 Working Load Limit (WLL). Accidentally using a G70 hook on a G80 sling creates an extremely dangerous situation. To prevent this, always use components of the same grade and verify the embossed markings on every part of the assembly, including the chain, hooks, and master links.
Evaluating a lifting chain goes beyond its grade. Operators and procurement managers must understand key performance metrics that dictate its suitability and safety for a specific task. These metrics are defined by international standards and reflect the chain's capabilities under real-world conditions.
These two terms are fundamental to lifting safety but are often confused.
Minimum Breaking Strength (MBS): This is the absolute minimum force at which a new chain is expected to break when pulled in a straight line in a laboratory test. It is a value used by engineers and manufacturers.
Working Load Limit (WLL): This is the maximum mass or force that the chain is certified to handle in general service. The WLL is always significantly lower than the MBS.
For overhead lifting chains like G80, the industry-mandated design factor (or safety factor) is 4:1. This means the WLL is set at just 25% of the chain's MBS. This crucial 75% buffer accounts for dynamic forces, shock loading, and slight imperfections that can occur in the field. You must never exceed the WLL stamped on the chain's identification tag.
A chain's performance can be affected by the environment in which it operates. Two key considerations are temperature and corrosion.
G80 alloy steel maintains its full WLL in a wide range of temperatures, typically from -40°F to 400°F (-40°C to 204°C). However, exposure to extreme temperatures can permanently alter the steel's heat treatment and reduce its strength. You must apply reductions to the WLL when operating outside this range, following manufacturer guidelines or standards like ASME B30.9.
While the alloys in G80 offer some corrosion resistance, a protective finish is essential for extending its service life, especially in wet or coastal environments. Common finishes include:
Black Oxide: A standard, basic finish providing minimal corrosion protection, suitable for dry, indoor use.
Electro-galvanized: A coating of zinc provides good resistance to moisture and is a common choice for construction sites.
Powder Coated: A durable polymer coating offers excellent corrosion and abrasion resistance, often in bright colors for high visibility.
The choice of finish should match the expected site conditions to prevent premature degradation from rust.
Impact loading, or "shock loading," occurs when a load is suddenly jerked or dropped during a lift. This can generate dynamic forces far greater than the static weight of the load itself. G80's ductility, achieved through the tempering process, is critical for absorbing these shock loads without fracturing. However, shock loading should always be avoided. Lifts must be started slowly and smoothly to prevent placing excessive dynamic stress on the chain and other rigging components.
The safety of your entire lifting operation depends on the quality of the chain you procure. Sourcing from reputable Lifting Chain manufacturers is not just a best practice; it is a fundamental requirement for compliance and risk management. Here’s what to look for when evaluating a supplier.
Trustworthy manufacturers provide irrefutable proof of their product's quality and origin. This is non-negotiable.
Mill Test Certificates: Every batch of chain should come with a certificate that details its chemical composition, the results of mechanical tests (like breaking strength and elongation), and a statement of compliance with relevant standards.
Embossed Markings: The chain itself must be permanently marked. Look for markings at regular intervals (e.g., every 3 feet or 20 links) that identify the grade ("8", "80", or "G8") and the manufacturer's symbol or name. A chain with no markings is untraceable and unsafe for lifting.
Your supplier must demonstrate and certify compliance with recognized international and regional standards. These benchmarks ensure that the chain was produced and tested according to rigorous, globally accepted procedures. Key standards to verify include:
EN 818-2: The European standard for short-link chains for lifting purposes.
ASME B30.9: The American Society of Mechanical Engineers standard for slings, which covers alloy chain slings.
ISO 3076: The International Organization for Standardization standard for short-link steel chains.
ASTM A973: The American Society for Testing and Materials standard for Grade 80 and 100 alloy steel chain.
Top-tier manufacturers go beyond basic compliance. Look for evidence of a robust quality control program.
Proof-Testing: Every single link of a new lifting chain must be proof-tested by the manufacturer to a force of at least two times its WLL. This test ensures there are no hidden defects from welding or forming.
Non-Destructive Testing (NDT): Ask if the manufacturer uses methods like magnetic particle inspection or ultrasonic testing to detect surface or internal flaws that might not be visible to the naked eye.
A reliable product is only useful if you can get it when you need it. Assess the manufacturer’s logistical capabilities. Can they provide consistent lead times? Crucially, do they also manufacture and stock a full range of matching G80 components, such as hooks, master links, and connecting links? Using a single-source supplier for all assembly components ensures guaranteed compatibility and simplifies traceability.
Procuring a high-quality G80 chain is the first step. Maintaining it through a rigorous safety and inspection program is essential for protecting personnel and assets. This framework is governed by legal requirements and industry best practices.
In the United States, the use of rigging equipment is regulated by law. The Occupational Safety and Health Administration (OSHA) standard 1910.184 outlines the requirements for slings, including alloy steel chains. ASME B30.9 is the corresponding industry consensus standard, providing detailed technical guidelines for fabrication, use, inspection, and maintenance. Compliance with these standards is mandatory. They form the basis for any professional rigging program and define the criteria for removing a damaged chain from service.
Before any shift or first use of the day, a "competent person" must perform a visual inspection of the chain sling. This quick check can identify serious hazards before a lift begins.
Check for Nicks, Gouges, or Cracks: Carefully examine each link for any sharp cuts, deep scratches, or cracks. These create stress points that can lead to failure.
Measure for Link Elongation: Compare the chain to a new, unused section. Any visible stretch indicates overloading. The maximum allowable stretch is typically 5% before the chain must be discarded.
Check for Diameter Reduction: Inspect the contact points between links for signs of wear. If the diameter of the link material is reduced by more than 10% at any point, the chain's capacity is compromised.
Inspect for Heat Damage: Look for any discoloration, melted areas, or weld spatter. High heat can destroy the chain's critical heat treatment.
Verify the Presence of a Legible ID Tag: Every chain sling must have a durable, legible tag stating its WLL, size, grade, and manufacturer. A sling without a tag is unidentified and must be removed from service.
Even a perfect chain can fail if used improperly. Training operators to avoid these common mistakes is critical:
Side-Loading: Chain links are designed to be pulled in a straight line. Applying force across the width of a link (side-loading) can deform and weaken it.
Twisting and Knotting: Never twist, knot, or kink a chain. This puts immense stress on individual links and dramatically reduces the chain's lifting capacity.
Makeshift Shortening: Never use bolts, nuts, or any other hardware to shorten a chain. Only use properly engineered grab hooks or chain shorteners designed for the specific grade and size of the chain.
Grade 80 lifting chain has earned its place as the industry standard for a clear set of reasons. It represents a carefully engineered solution that masterfully balances high-performance metallurgy, verifiable safety features, and practical cost-effectiveness. For the vast majority of heavy lifting applications across construction, manufacturing, and logistics, G80 delivers the most predictable and reliable performance. It provides an straightforward path to regulatory compliance and operational safety.
Your next steps should be clear. When specifying lifting equipment, prioritize G80 for general use unless a specific weight or environmental challenge justifies the premium for higher grades. Most importantly, partner with certified manufacturers who provide complete traceability and build a culture of safety around rigorous, daily inspection protocols. By investing in quality material and diligent oversight, you maximize the safety, longevity, and value of your most critical lifting assets.
A: Yes, it can be used for towing and is certainly strong enough. However, its primary design, testing, and cost are optimized for the stringent safety requirements of overhead lifting. For purely towing applications, a lower-grade transport chain like G70 is often more cost-effective. Always ensure the chain's WLL is sufficient for the towing task.
A: A genuine G80 chain has two key identifiers. First, it must be embossed with "8," "80," or the manufacturer's specific G80 mark at regular intervals (e.g., every 3 feet). Second, if it's part of a sling assembly, it must have a durable, legible identification tag stating its grade, size, and Working Load Limit (WLL). Absence of either of these is a red flag.
A: No, absolutely not. Field welding or applying any high heat to a G80 chain will destroy its precise heat treatment, severely compromising its strength and ductility. A damaged or welded chain must be immediately and permanently removed from service. Any repairs must be performed by the original manufacturer.
A: There is no difference. The terms are used interchangeably to refer to the same high-strength alloy steel chain. "G" is simply a common abbreviation for "Grade." Both G80 and Grade 80 denote a chain with a minimum tensile strength of 800 megapascals (MPa).
A: G80 maintains 100% of its rated Working Load Limit (WLL) in temperatures from -40°F to 400°F (-40°C to 204°C). Above this range, its strength begins to decrease. You must consult the manufacturer's de-rating chart. For example, at 500°F (260°C), the WLL might be reduced by 15%. Use in temperatures above 1000°F (538°C) is prohibited.
